Fast Consistent Dry Blending

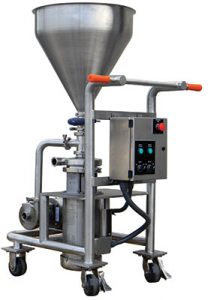

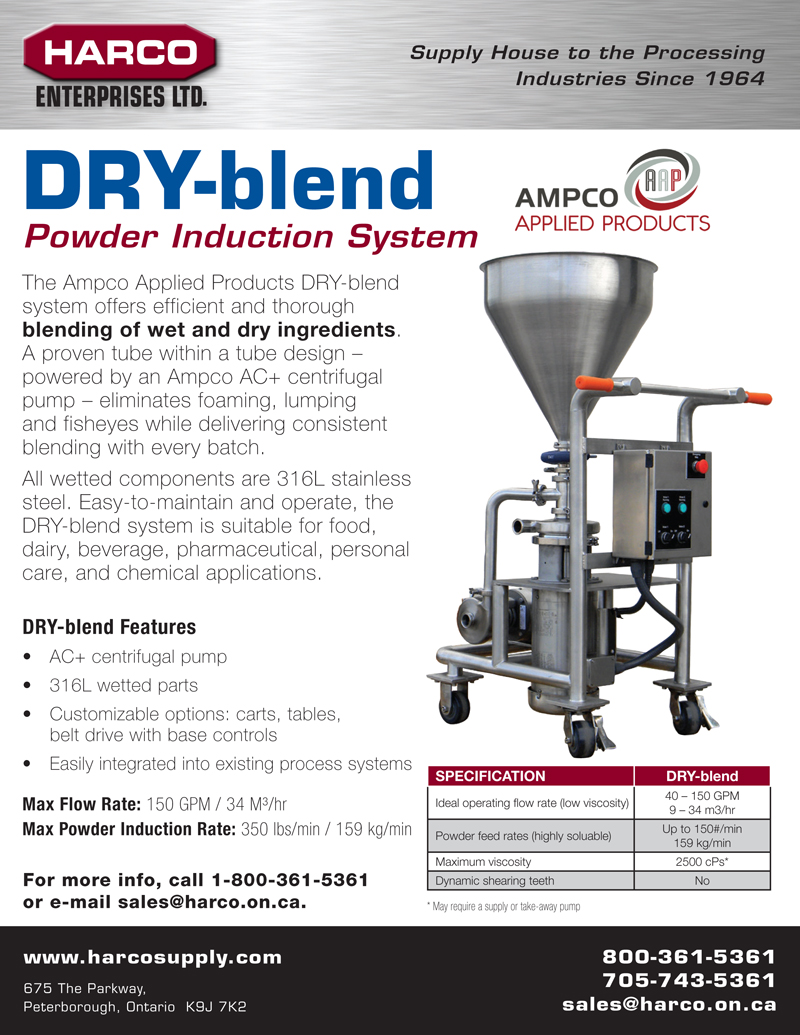

The Ampco Applied Products DRY-blend system offers efficient and thorough blending of wet and dry ingredients. The proven tube within a tube design keeps dry ingredients and liquids separate until introduction in the mixing chamber. Ampco’s DRY-blend uses the proven proven design of a tube within a tube and a Ampco AC+ centrifugal pump eliminates foaming, lumping and fisheyes, while delivering consistent blending with every batch.
The AC+ centrifugal pump offers a balanced and redesigned threaded shaft and impeller nut design that increases seal life. All wetted components are made of 316L stainless steel and the hopper style system can induce up to 350 lbs/min/159 kg/min.
Easy to maintain and operate, the Ampco DRY-blend system is suitable for food, dairy, beverage, pharmaceutical, personal care, and chemical applications.
- AC+ centrifugal pump
- 316L wetted parts
- Customizable options: carts, tables, belt drive with base controls
- Easily integrated into existing process systems
Max Liquid Flow Rate: 150 GPM / 34 M³/hr
Max Powder Induction Rate: 350 lbs/min / 159 kg/min
