SHEAR-max openAMPCO SHEAR-max HIGH SHEAR INLINE MIXER

Ampco’s SHEAR-max delivers high shear inline mixing with a twist. This Ampco SHEAR-max high shear inline mixer offers particle size reduction, emulsification and dispersion with tight tolerances for high shear applications while maintaining extremely efficient flow.

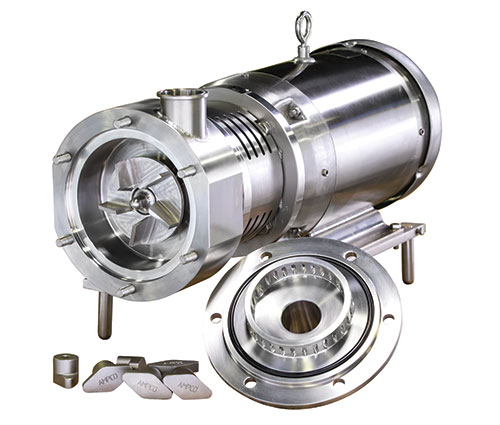

The curved wedge rotor and stator design of the SHEAR-max make it one of the most efficient and hygienic designs on the market. The Ampco SHEAR-max will disperse, dissolve, emulsify, de-agglomerate, homogenize, or simply blend.

Designed for single pass or batch style processing of liquids and semi-solids, Ampco’s SHEAR-max high shear inline mixer is extremely effective at hydrating and dispersing powders. The innovative wedge style rotor allows solids into the shear zone while efficiently employing motor horsepower. The single or dual stage stator provides superior clean-ability and tight rotor / stator tolerances.



Ampco SHEAR-max features:
  • Integrated impeller and dynamic shear teeth
  • Clean-in-place
  • 316L stainless steel construction/ 304 stainless steel adapter
  • Dynamically balanced impeller
  • Multiple stator designs
  • Available in single or multi stage design

Max Flow Rate:  800 GPM / 182 Mᵌ/hr
Seal Specifications:  3 Seal Options

Click here for more information or contact us at 1-800-361-5361 or 705-743-5361, or sales@harco.on.ca
