ALFA LAVAL UNIQUE SINGLE SEAT VALVES

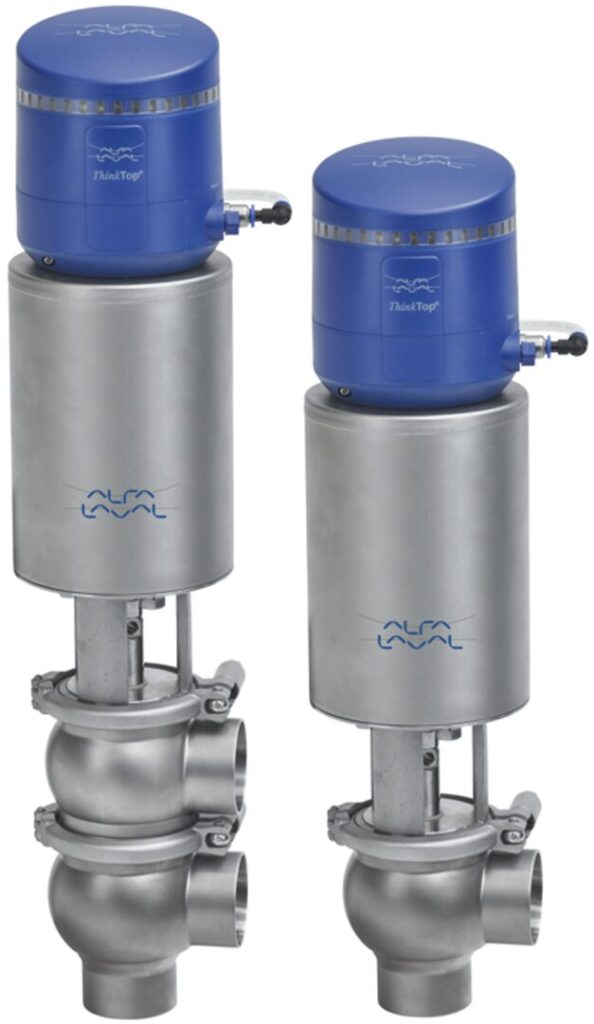

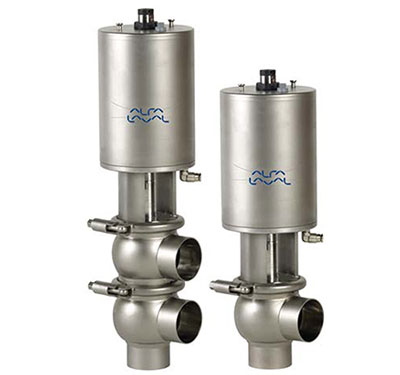

Harco offers Alfa Laval Unique Single Seat Valves (SSV), robust, reliable and versatile pneumatic valve. It is designed for uninterrupted production in a broad range of hygiene-critical applications.

Alfa Laval’s Unique SSV is an air-operated seat valve, that can be remotely controlled. And can be configured as a shut-off or change-over valve with various actuators NO, NC or two-step for smoother operation to avoid pressure peaks and/or over filling of a tank.

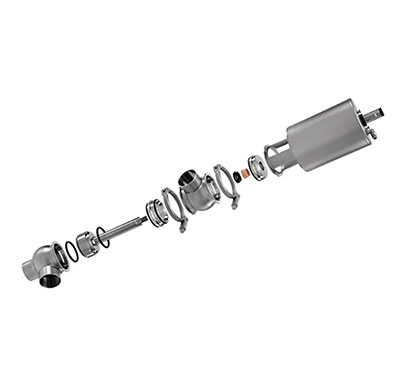

Valve bodies, plugs and actuators of these control valves can be configured to meet virtually any requirement, resulting in cost-effective solutions that meet high standards of hygiene and aseptic compatibility.

The Alfa Laval Unique SSV range of food grade valve is engineered to provide excellent hygiene and cleanability. With a surface finish of Ra ≤ 0.8μm, the smooth, weld-free valve body eliminates crevices that can trap bacteria. The design of the plug supports enhanced cleaning-in-place (CIP) capabilities, and a double-acting lip seal that minimizes any risk of cross-contamination.

Thanks to its straightforward, reliable design, the Alfa Laval Unique SSV range provides a long service life, reduced product loss, greater product safety and more processing uptime. Few moving parts reduce service requirements and inventory costs. More effective CIP procedures with reduced cleaning cycles and, subsequently, the reduced use of cleaning fluids, water and utilities also contribute to the Alfa Laval Unique SSV’s low total cost of ownership. Alfa Laval Unique SSV parts are available.

Other variants available such as:

  • Alfa Laval Unique SSV Aseptic Valve
  • Alfa Laval Unique SSV Y-Body Valve
  • Alfa Laval Unique SSV Tank Outlet Valve
  • Alfa Laval Unique SSV Long-Stroke Valve
  • Alfa Laval Unique SSV Tangential Valve
  • Alfa Laval Unique SSV Reverse-Acting Valve
  • Alfa Laval Unique SSSV Small Single Seat Valve
  • Alfa Laval Unique SSV Manually Operated Valve
  • Alfa Laval Unique SSV Flo-Diversion Valve

Click here for more information or contact us at 1-800-361-5361 or 705-743-5361, or sales@harco.on.ca

RESOURCES

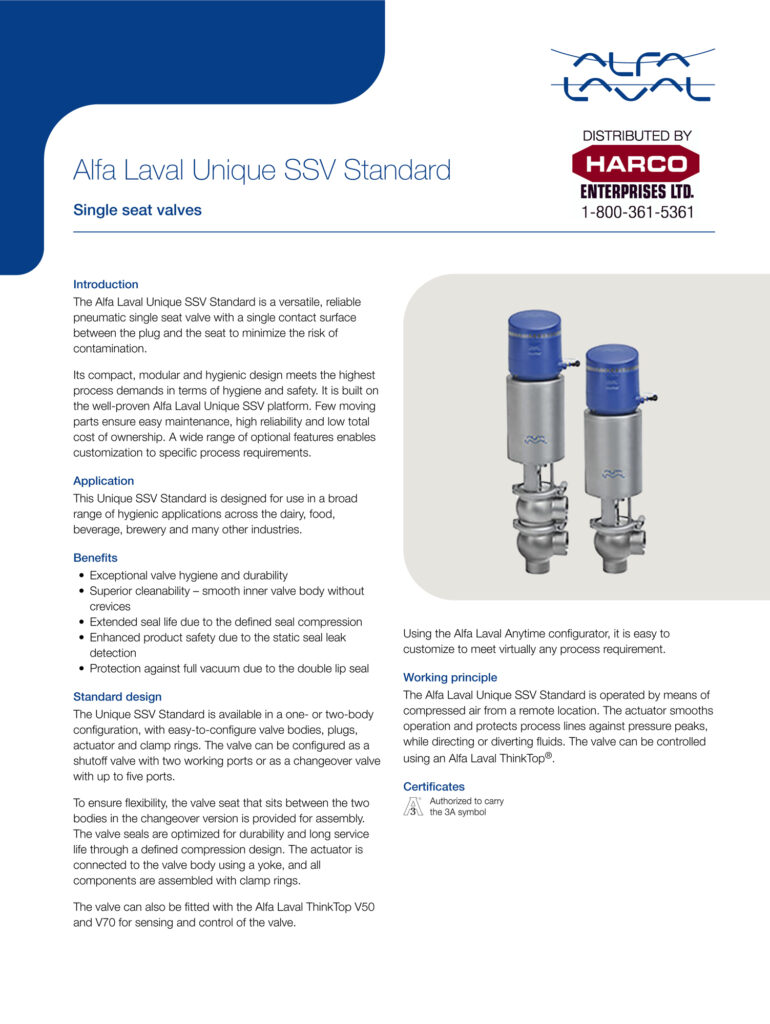

Alfa Laval Unique SSV Leaflets


Unique SSV Aseptic
Unique SSV Y-Body Unique SSV Tank Outlet Unique SSV Long-Stroke
Unique SSV Tangential

Unique SSV Reverse-Acting

Unique SSSV Small Unique SSV Manual

Unique SSV Flo-Diversion



SPARE PARTS

Unique SSV

Alfa Laval Unique SSV Shut Off Valve Service Kits - Elastomer Plug Seal
  1”  1½”  2”  2½”  3”  4”
EPDM 9611926501 9611926502 9611926503 9611926504 9611926505 9611926506
HBNR 9611926507 9611926508 9611926509 9611926510 9611926511 9611926512
FPM 9611926513 9611926514 9611926515 9611926516 9611926517 9611926518
Alfa Laval Unique SSV Shut Off Valve Service Kits - TR2
  1”  1½”  2”  2½”  3”  4”
EPDM 9611926576  9611926561 9611926562 9611926563 9611926564 9611926565
HBNR 9611926577  9611926566 9611926567 9611926568 9611926569 9611926570
FPM 9611926578  9611926571 9611926572 9611926573 9611926574 9611926575
Alfa Laval Unique SSV Divert Valve Service Kits - Elastomer Plug Seal
  1”  1½”  2”  2½”  3”  4”
EPDM 9611926579 9611926580 9611926581 9611926582 9611926583 9611926584
HBNR 9611926585 9611926586 9611926587 9611926588 9611926589 9611926590
FPM 9611926591 9611926592 9611926593 9611926594 9611926595 9611926596
Alfa Laval Unique SSV Divert Valve Service Kits - TR2
  1”  1½”  2”  2½”  3”  4”
EPDM N/A 9611926633 9611926634 9611926635 9611926636 9611926637
HBNR N/A 9611926638 9611926639 9611926640 9611926641 9611926642
FPM N/A 9611926643 9611926644 9611926645 9611926646 9611926647

Unique SSV – Reverse Acting

Alfa Laval Unique SSV Reverse Acting Shut Off Valve Service Kits - Elastomer Plug Seal
  1”  1½”  2”  2½”  3”  4”
EPDM 9611926525 9611926526 9611926527 9611926528 9611926529 9611926530
HBNR 9611926531 9611926532 9611926533 9611926534 9611926535 9611926536
FPM 9611926537 9611926538 9611926539 9611926540 9611926541 9611926542
Alfa Laval Unique SSV Reverse Acting Shut Off Valve Service Kits - TR2
  1”  1½”  2”  2½”  3”  4”
EPDM N/A 9611926648  9611926649 9611926650 9611926651 9611926652
HBNR N/A 9611926653  9611926654 9611926655 9611926656 9611926657
FPM N/A 9611926658  9611926659 9611926660 9611926661 9611926662
Alfa Laval Unique SSV Reverse Acting Divert Valve Service Kits - Elastomer Plug Seal
  1”  1½”  2”  2½”  3”  4”
EPDM 9611926597 9611926598 9611926599 9611926600 9611926601 9611926602
HBNR 9611926603 9611926604 9611926605 9611926606 9611926607 9611926608
FPM 9611926609 9611926610 9611926611 9611926612 9611926613 9611926614
Alfa Laval Unique SSV Reverse Acting Divert Valve Service Kits - TR2
  1”  1½”  2”  2½”  3”  4”
EPDM N/A 9611926663 9611926664 9611926665 9611926666 9611926667
HBNR N/A 9611926668 9611926669 9611926670 9611926671 9611926672
FPM N/A 9611926673 9611926674 9611926675 9611926676 9611926677

Unique SSV – Long Stroke

Alfa Laval Unique SSV Long Stroke Shut Off Valve Service Kits - Elastomer Plug Seal
  1”  1½”  2”  2½”  3”  4”
EPDM N/A 9611926502  9611926503 9611926504 9611926505 9611926506
HBNR N/A 9611926508  9611926509 9611926510 9611926511 9611926512
FPM N/A 9611926514  9611926515 9611926516 9611926517 9611926518
Alfa Laval Unique SSV Long Stroke Shut Off Valve Service Kits - TR2
  1”  1½”  2”  2½”  3”  4”
EPDM N/A 9611926561  9611926562 9611926563 9611926564 9611926565
HBNR N/A 9611926566  9611926567 9611926568 9611926569 9611926570
FPM N/A 9611926571  9611926572 9611926573 9611926574 9611926575
Alfa Laval Unique SSV Long Stroke Divert Valve Service Kits - Elastomer Plug Seal
  1”  1½”  2”  2½”  3”  4”
EPDM N/A 9611926580 9611926581 9611926582 9611926583 9611926584
HBNR N/A 9611926586 9611926587 9611926588 9611926589 9611926590
FPM N/A 9611926592 9611926593 9611926594 9611926595 9611926596
Alfa Laval Unique SSV Long Stroke Divert Valve Service Kits - TR2
  1”  1½”  2”  2½”  3”  4”
EPDM N/A 9611926633 9611926634 9611926635 9611926636 9611926637
HBNR N/A 9611926638 9611926639 9611926640 9611926641 9611926642
FPM N/A 9611926643 9611926644 9611926645 9611926646 9611926647

Unique SSV – Aseptic

Alfa Laval Unique SSV Aseptic Shut Off Valve Service Kits
  1”  1½”  2”  2½”  3”  4”
EPDM 9611926543  9611926544 9611926545 9611926546 9611926547 9611926548
HBNR 9611926549  9611926550 9611926551 9611926552 9611926553 9611926554
FPM 9611926555  9611926556 9611926557 9611926558 9611926559 9611926560
Alfa Laval Unique SSV Aseptic Divert Valve Service Kits
  1”  1½”  2”  2½”  3”  4”
EPDM 9611926615 9611926616 9611926617 9611926618 9611926619 9611926620
HBNR 9611926621 9611926622 9611926623 9611926624 9611926625 9611926626
FPM 9611926627 9611926628 9611926629 9611926630 9611926631 9611926632

Unique SSV – Actuators

Alfa Laval Unique SSV Actuators
  1”  1½”  2”  2½”  3”  4”
  9611926500 9611926500 9611926500 9611926500 9611926500 9611926500
