Sampling Valves

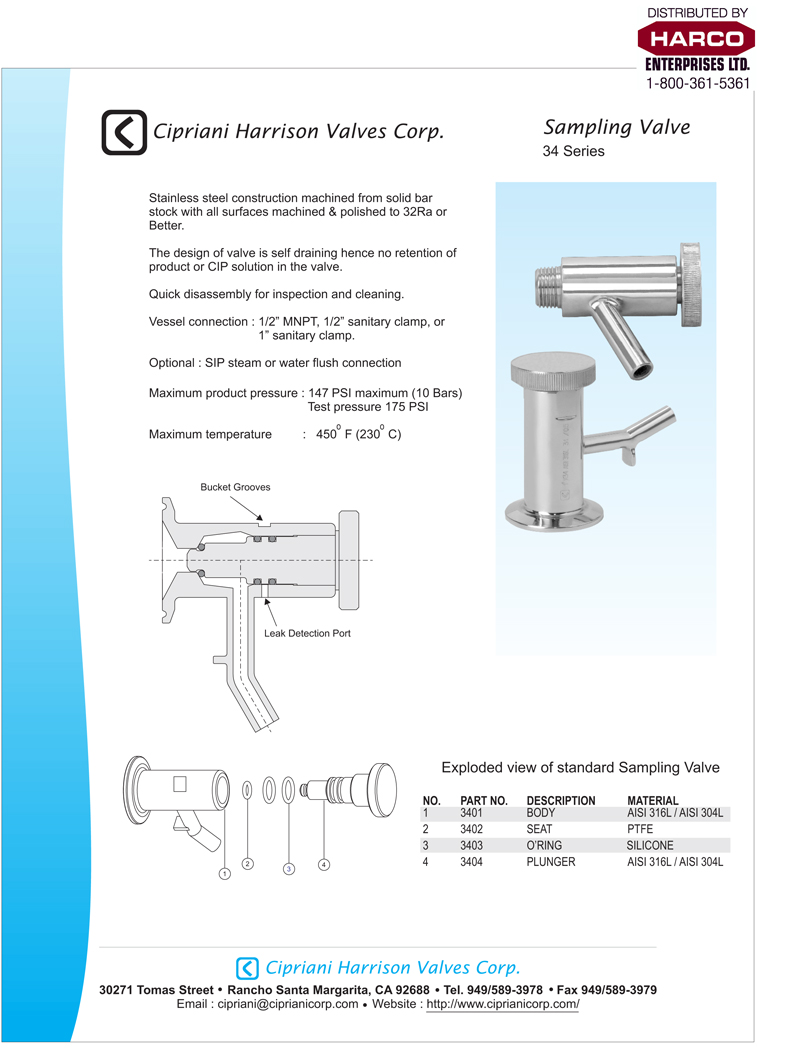

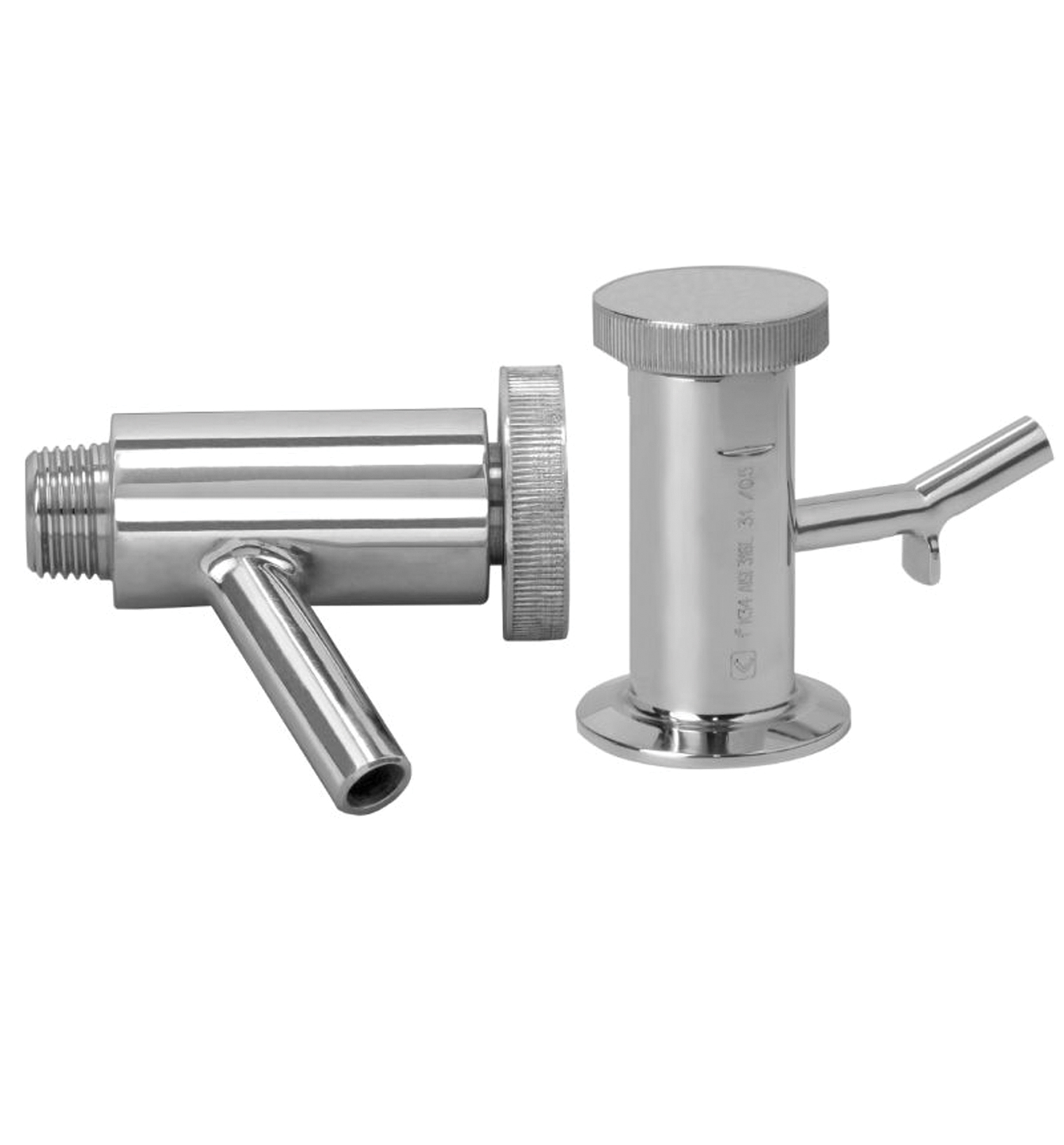

CIPRIANI HARRISON 34 SERIES SAMPLING VALVES

Elevate your sampling capabilities with Harco’s latest addition, the 34 Series Sampling Sanitary Valves from Cipriani Harrison. Ideal for applications in the processing industries, these hygienic sanitary sampling valves effortlessly extract samples from pipelines or tanks. Tailored versions are available to perfectly match diverse applications.

Crafted from premium AISI 304 or 316L raw materials, these Cipriani Harrison 34 Series Sampling Valves boast superior quality. The valve comprises a meticulously machined body and plunger derived from a stainless-steel bar, with all surfaces polished to a gleaming 32Ra or better.

Designed for optimal flow, seamless sampling, and efficient post-sampling cleaning, these sampling valves ensure a hygienic process. The self-draining design eliminates any product or CIP solution retention in the valve, promoting cleanliness and preventing contamination. Additionally, a leak detection port is incorporated for swift identification of seal failure.

Experience hassle-free disassembly for inspection and cleaning, facilitating quick maintenance. Opt for the online CIP port option to enhance the cleaning process after each cycle, ensuring the longevity and reliability of your equipment.

Vessel connection:

1/2” MNPT, 1/2” sanitary clamp, or 1” sanitary clamp.

Optional:

SIP steam or water flush connection

Maximum product pressure:

  • 147 PSI maximum (10 Bars)
  • Test pressure 175 PSI

Maximum temperature:

450°F (230°C)

Elevate your sampling procedures with the precision and quality of Harco’s 34 Series Sanitary Sampling Valves.
