SBH/SBI Series Blenders

AMPCO SBH/SBI SERIES SHEAR BLENDERS

Customizable, Multi-Tasking, Efficient Shear Blending

Offering two moderate shear blender model series from Ampco Applied Products: Ampco SBH High-Shear Blenders and Ampco SBI Shear Pump Blenders. These Ampco SBH/SBI series shear blenders are suitable for such applications as food, beverage, and pharmaceutical industries. Trials, rental and leasing options are available.

AMPCO SBH SHEAR BLENDER

The High Shear Blender

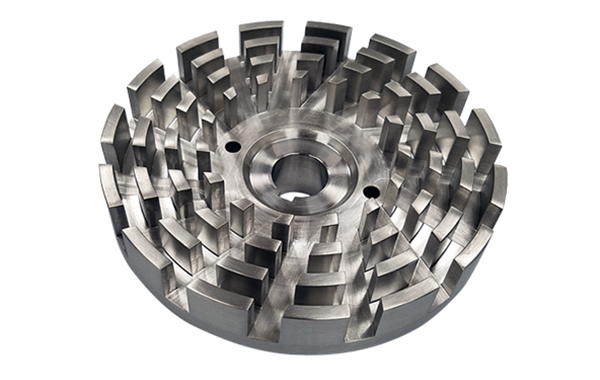

The high shear blending capability of Ampco’s SBH Shear Blender is facilitated by the greater number and expanded rows of rectangular-shaped teeth with radial slots for the higher shear rates. Different cover and impeller sets are available for varying application requirements. The SBH Series is based on the LF Series pump design and offers multiple front loading seal options.

This is the best blender for improving process time when the highest shear is desired.

SBH Inline Blender

Ampco’s SBH Shear Blender features:
  • High shear blending
  • 316L stainless steel heavy wall construction
  • 304 stainless steel adapter
  • Dynamically balanced impeller
  • 316L stainless steel shaft

Max flow rate: 200 GPM/ 45 m³/hr
Seal Specifications:  2 Seal Options

AMPCO SBI SHEAR PUMP BLENDER

The ability to pump and blend in a single stage

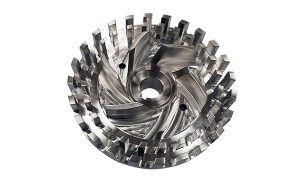

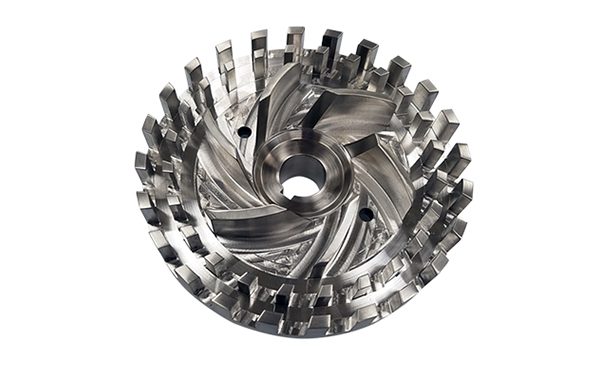

The Ampco SBI Shear Pump Blender Series pumps and blends product in a single stage. This innovative design can move product and create considerable pressure by way of a hybrid impeller.

This fine-tuned impeller design – used in combination with two rows of rectangular shear teeth – can attain amazing performance levels. As with the SBH, the SBI is based on the Ampco LF Series pump and offers multiple front loading seal options.

The SBI shear pump can be used with ingredients such as stabilizers, thickeners, gums, sugars, and other additives.

Ampco’s SBI features:

SBI Inline Blender

  • Medium shear blending
  • 316L stainless steel wetted construction
  • Combination integrated impeller with dynamic shear teeth
  • Pump and blend in a single stage
  • 304 stainless steel adapter
  • Dynamically balanced impeller
  • 316L stainless steel shaft

Max flow rate: 510 GPM/ 116 m³/hr
Max powder induction rate: 150 lbs/min / 68 kg/min
Seal Specifications:  2 Seal Options

For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]

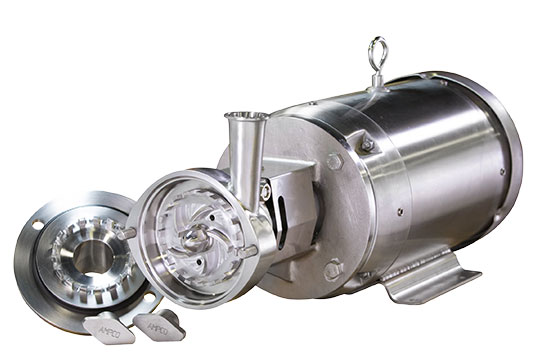

SBI with cover off
