SP Series Pumps

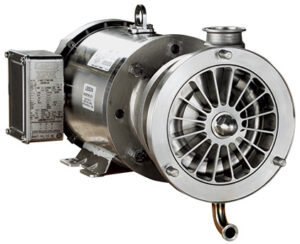

AMPCO SP SERIES SELF-PRIMING LIQUID RING PUMPS
Harco offers the Ampco SP Series Self-Priming Liquid Ring Pumps which are ideally suited for products with entrained air and CIP return applications. Entrained air is the cause of noise, vibration, seal failure, general performance reduction, or eventual pump failure. The ability to handle products with entrained air makes Ampco’s SP series pumps extremely efficient for emptying tanks and drums
Designed to handle entrained air conditions, while maintaining specified performance and efficiency levels, the SP series centrifugal pumps from Ampco are built with extremely tight manufacturing tolerances. A unique vane-shaped or wagon-wheel style impeller design allows Ampco’s SP series self-priming liquid ring pumps to handle shear sensitive products efficiently, while maintaining peak pump performance.
Ampco’s SP series pumps include a 304 stainless steel adapter to resist corrosion and are in conformance with 3‑A sanitary standards. SP self-priming liquid ring pumps from Ampco are available with either single or double external mechanical seals.
Contact Harco for your Ampco SP Series Pump or SP Pump replacement part inquires.
For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]
SPARE PARTS
Ampco SP Pumps Seal Kit
| Seal Type | Pump Model | Part Number | Description |
| Single | SP210-SP225 | GS2600010-SC | Single Seal: Silicon carbide / Carbon / Viton (C / N / V) |
| Single | SP210-SP225 | GS2600012 | Single Seal: Silicon carbide / Silicon carbide / Viton (C / C / V) |
| Single | SP240 | GS2600013 | Single Seal: Silicon carbide / Carbon / Viton (C / N / V) |
| Double | SP210-SP225 | GS2600018-SC | Double Seal: Silicon carbide / Carbon / Carbon / Viton (C / N / N / V) |
| Double | SP210-SP225 | GS2600020 | Double Seal: Silicon carbide / Silicon carbide / Carbon / Viton 586 (C / C / N / V) |
Mechanical seal replacement kits include: Mechanical seal, seal gaskets, seal O-rings, and impeller nut gasket
Casing gaskets must be purchased separately
Seal Details: C = silicon carbide N = carbon V = Viton
Ampco SP Pumps Casing Gaskets
| Model | Buna | EPDM | VITON |
| SP-210/SP-215 | GX80000334 | GX80000351 | GX80000335 |
| SP-220 | GX80000336 | GX80000058 | GX80000019 |
| SP-225 | GX80000363 | GX80000361 | GX80000362 |
