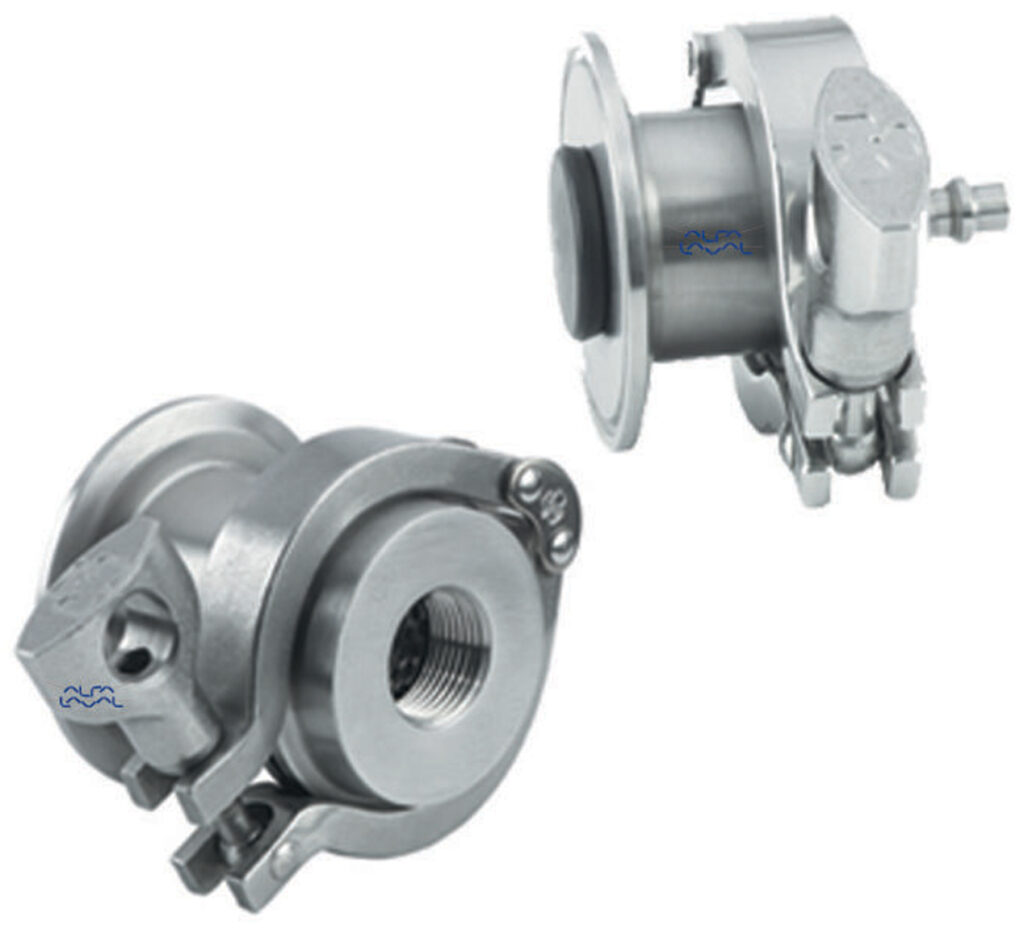

Alfa Laval Air Blow Check Valve

Alfa Laval’s 62-174/326 Tri-Clover® brand Air Blow Check Valve is designed evacuate lines of product or CIP solution and for air agitation of product in tanks and other vessels.

Standard Design

Fail Safe Operation – backflow of product or CIP solution prevented by simple air to open, spring to close operation.
Easy Assembly/Disassembly – Tri-Clamp® connections permit quick disassembly and assembly for replacing Filter Media, cleaning or inspection.
Remotely Controlled – can be remotely controlled by controlling the supply of air to the valve.
Rugged Construction – type 316 stainless steel is standard. Spherical plug assembly is bonded EPDM rubber.
Conforms to 3A Accepted Practices – for applications requiring a final filtering of air prior to entering tank or pipelines.

Technical Data

Temperature range: 20°F to 284°F
Pressure range: Varies based on style of clamp used
Air pressure: 810 PSI minimum

Physical Data

Materials
Product wetted steel parts:  AISI 316 stainless steel
Other steel parts: AISI 304 stainless steel
Product wetted parts: EPDM
Other seals: Buna
