BINEM Drum Unloading Systems

BINEM Drum Unloading Systems

AMPCO BINEM DRUM UNLOADING SYSTEMS

Reduce Waste & Downtime, Increase Efficiency

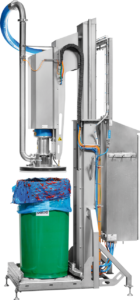

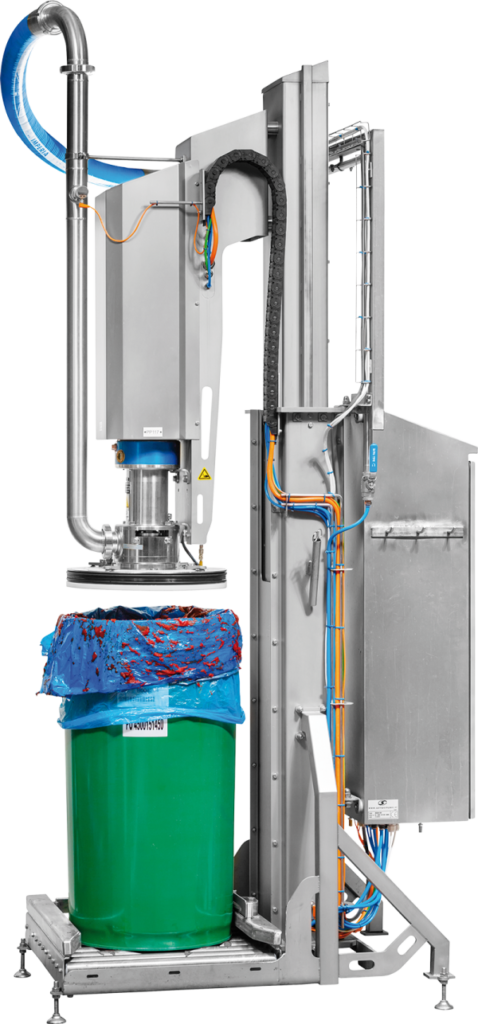

The Ampco BINEM Drum Unloading Systems by Ampco Applied Products was designed to maximize hygienic processing while reducing waste by utilizing a Bornemann twin screw pump. This technology delivers optimal performance and efficiencies compared to traditional air-operated drum unloading equipment.

Customizable dosing capabilities ensure consistency for every batch and safeguard remaining product from unsanitary exposure between uses. The Ampco BINEM Drum Unloading System easily pairs with control devices so you can pump in precise amounts of tomato paste, meat paste, chocolate spread, cookie filling, peanut butter and more.

Highly viscous products and those that are not self-leveling are perfect for the Ampco BINEM Drum Unloading System. This is due to the unique follower plate and inflatable rubber wiper design. Together, they deliver optimal performance and efficiency compared to traditional drum pumps and suction wands.Binem Foto 2 800

To make sure your lines remain up and running with minimal downtime, the Ampco BINEM Drum Unloading System is built for quick changeover. The one single pneumatic cylinder lifts the pump while a swing arm unit rapidly removes and replaces up to four drums per pallet. The lifting cylinder is also hygienically housed in the guiding system, and the follower plate can be effortlessly dismantled for quick and hygienic cleaning in place.

Round or square, large or small, with or without a liner – BINEM Drum Unloading Systems are customizable to meet the unique needs of a wide variety of applications, including tomato paste, chocolate spread, fillings, peanut butter and many more.

Pump Unloading System Standard Features:
  • Powered by a Bornemann twin screw pump
  • Designed for highly vicious and not self-leveling products
  • Multiple options for drum size/handling
  • Pairs with control devices for batch dosing
  • CIP-able
  • Meets strict hygienic requirements

Specifications:
Pressure:  362 PSI Max
Product Flow Rate:  Up to 53 gpm
Viscosity:  Up to 1,000,000 cP
Product Temperature: Max 212°F

Click here for more information or contact us at 1-800-361-5361 or 705-743-5361, or sales@harco.on.ca
