Flow Measurement

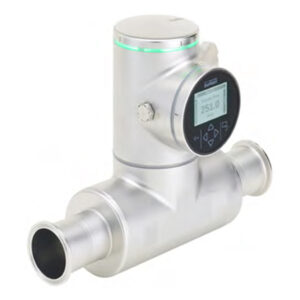

BÜRKERT – TYPE 8098 FLOWave SAW FLOW METER
Harco offers the Type 8098 flow meter from Bürkert, part of their FLOWave product range and is based on the SAW (Surface Acoustic Waves) technology. The Bürkert Type 8098 FLOWave SAW Flow Meter has been designed for applications with the highest hygienic demands using stainless-steel materials, a measuring tube free of any wetted parts except for the actual tube, and the ideal outer hygienic design.
The Bürkert ‘s FLOWave SAW flow meter has a range of integrated functions, including the advantages of flexibility, ease of cleaning, compact dimensions, lightweight, easy installation and handling, and is compliant with numerous standards.
Optimal measurement results can be achieved with homogeneous liquids, free of air and solid particles. For liquids with high viscosity, an integrated viscosity compensation can be activated. Gas and steam cannot be measured; however, their flow does not have any negative effect on the device or its operation and other liquids flowing through afterwards are measured correctly as before.
Besides volume flow, a density measurement optional feature is available. With this option, the mass flow is calculated based on volume flow and density measurements.
Special functions derived from further process values (differentiation factor (DF), acoustic transmission factor) offer additional information about the particular liquid in use.
- No obstacles inside the measuring tube, compact, lightweight and low energy consumption
- Conforms to hygienic requirements, CIP/SIP compatible
- Ideal for liquids with low or no conductivity
- Digital communication, parameterization via Communicator, display
- Optional: ATEX/IECEx certification, II 3G/D
