Flow Measurement
BÜRKERT – TYPE S056 MAGNETIC INDUCTIVE SENSOR
with hygienic process connections

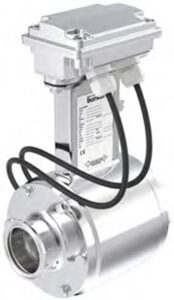

Harco offers the Bürkert Type S056 Magnetic Inductive Flow Sensor (compact or separate version) that is suitable for low-flow applications and liquids with minimum conductivity.
The combination with the dedicated Bürkert SE58 S transmitter (minimum required conductivity: 20 µS/cm) or with the Bürkert SE58 M or Bürkert SE58 L transmitters (minimum conductivity required: 5 µS/cm) results in a flow meter with different performance, functions, materials and approvals, with the corresponding suitability for the respective applications depending on the respective requirements.
With the Bürkert SE58 S you get a compact device, with the Bürkert SE58 M and Bürkert SE58 L compact devices or remote versions are created for which the transmitter and sensor are connected by 2 cables up to a maximum length. Standard process connections available for the Bürkert S056 Magnetic Inductive Flow Sensor are clamp or thread (dairy thread) connections.
- For connection to a transmitter Bürkert Type SE58 (with or without display, in compact or remote version) for flow measurement
- Hygienic version, 3A certificate
- For food and beverage or pharmaceutical applications
- Flow rate measurements 0.2…approx. 4,500 l/min for DN 03…DN 100
