LKH Multistage Pumps
ALFA LAVAL LKH (LKHM) MULTISTAGE PUMPS
Harco offers the Alfa Laval LKH (LKHM) Multistage Centrifugal Pumps, designed to 3-A standards and available in two-, three- or four-stage models. The LKH Multistage Pumps from Alfa Laval save space and energy by replacing up to three booster pumps in a line. Suitable for high-pressure applications with low-capacity requirements, and many types of filtration applications.
They withstand system pressures up to 40 bar and deliver differential pressures up to 19 bar at 50 Hz. Designed for Cleaning-in-Place (CIP), and meeting the hygienic requirements of the dairy, food and beverage, personal care, biotechnology and pharmaceutical industries.

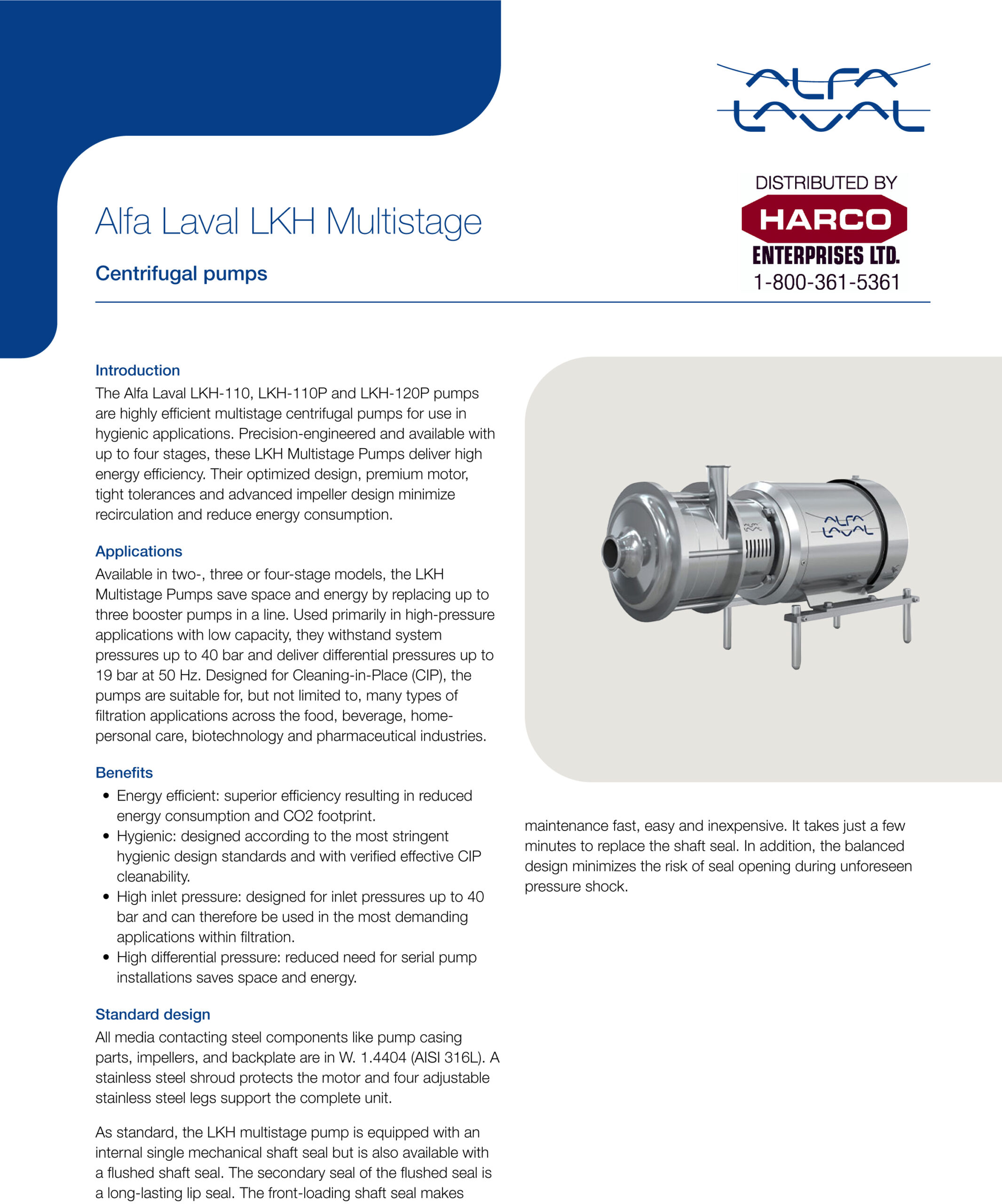

The Alfa Laval LKH-110, LKH-110P and LKH-120P pumps are highly efficient multistage centrifugal pumps. Precision-engineered and available with up to four stages, these LKH Multistage Pumps from Alfa Laval deliver high energy efficiency, increasing process productivity and gentle product handling. Their optimized design, premium motor, tight tolerances and advanced impeller design minimize recirculation and reduce energy consumption.
for more information or contact us at 1-800-361-5361 or 705-743-5361, or sales@harco.on.ca
SPARE PARTS FOR LKHM
Alfa Laval LKH Multistage - Single Shaft Seals
| Seal type | Description | LKHM 112 | LKHM 113 | LKHM 114 |
| Single Shaft seal | Complete shaft seal, C/SiC EPDM | 9611922096 | 9611922102 | 9611922108 |
| Single Shaft seal | Complete shaft seal, C/SiC NBR | 9611922097 | 9611922103 | 9611922109 |
| Single Shaft seal | Complete shaft seal, C/SiC FPM | 9611922098 | 9611922104 | 9611922110 |
| Single Shaft seal | Complete shaft seal, SC/SiC EPDM | 9611922655 | 9611922661 | 9611922667 |
| Single Shaft seal | Complete shaft seal, SiC/SiC NBR | 9611922656 | 9611922662 | 9611922668 |
| Single Shaft seal | Complete shaft seal, SiC/SiC FPM | 9611922657 | 9611922663 | 9611922669 |
Alfa Laval LKH Multistage - Single Shaft Seals
| Seal type | Description | LKHM 112 | LKHM 113 | LKHM 114 |
| Flushed Shaft seal | Complete shaft seal, C/SiC EPDM | 9611922099 | 9611922105 | 9611922111 |
| Flushed Shaft seal | Complete shaft seal, C/SiC NBR | 9611922100 | 9611922106 | 9611922112 |
| Flushed Shaft seal | Complete shaft seal, C/SiC FPM | 9611922101 | 9611922107 | 9611922113 |
| Flushed Shaft seal | Complete shaft seal, SC/SiC EPDM | 9611922658 | 9611922664 | 9611922670 |
| Flushed Shaft seal | Complete shaft seal, SiC/SiC NBR | 9611922659 | 9611922665 | 9611922671 |
| Flushed Shaft seal | Complete shaft seal, SiC/SiC FPM | 9611922660 | 9611922666 | 9611922672 |
