SIMPLE-Blend

AMPCO SIMPLE-blend SYSTEM

Powder Induction System

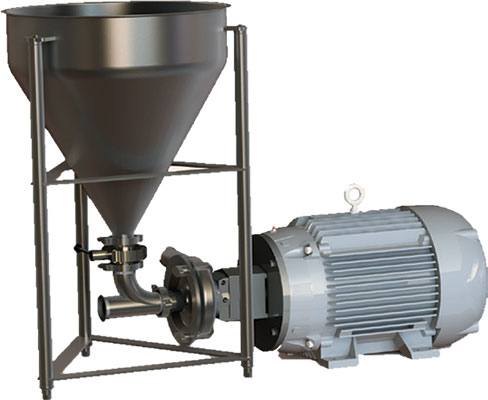

The Ampco SIMPLE-blend System is a lower cost option, with a simple design. This SIMPLE-blend system from Ampco Applied Products is designed to induce powders at a highly efficient rate with minimal shear. An Ampco SP Series pump powers this unit and the self-priming SP provides the suction for the induction process. A typical application for the Ampco Applied Products SIMPLE-blend unit would require little to no shear and induce easily dissolved products.

These units can be completely customized for the application and the process layout. Contact Harco to discuss your application needs.

SIMPLE Blend

Ampco SIMPLE-blend Features:
  • SP liquid ring pump
  • 304 stainless steel base material
  • 316L wetted parts
  • Motor Starter – NEMA 4X / VFD Upon Request
  • Stainless Steel Casters Upon Request
  • Powder control valve
  • Fluid control valve

Max Flow Rate: 510 GPM / 116 M3 /hr
Max Powder Induction Rate: 700 lbs/min / 318 kg/min

Click here for more information or contact us at 1-800-361-5361 or 705-743-5361, or sales@harco.on.ca
