Globe-Seat Valves


Pneumatically operated 2-way Globe Control Valve

In line with Bürkert’s philosophy the construction of the Type 2301 Globe-Seat Valve fulfils tough criteria for process environments. Unrivalled cycle life and sealing integrity is guaranteed by the proven self adjusting spindle packing with exchangeable V-seals. Each Bürkert pneumatically operated 2-way globe control valve body can be fitted with up to five sizes of trim sets.

These parabolic trims on the Bürkert Type 2301 Globe-Seat Valves provide a reliable and repeatable characteristic to vary the flow. The control cones are available in either stainless steel or with a durable PTFE seal or PEEK seal for tight shut-off. Leakage class III, IV or VI are available. The Bürkert Type 2301 Globe-Seat Valve design enables the easy integration of automation modules whether they are digital electro pneumatic positioner or process controller.

The fully integrated system has a compact and smooth design, integrated pneumatic lines, IP65/67 protection class and superior chemical resistance.

Bürkert Type 2301 Globe-Seat Valve Features:

  • Bi- Directional Compact, Stainless Steel design for optimal use in high corrosive environments, i.e. high frequency of wash downs
  • Unique AIR advantages with ELEMENT positioners and process controllers
  • Actuator allows to be rotated to orient air connections

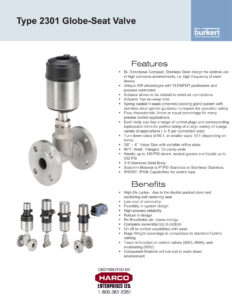

  • Actuator has no weep holeType 2301 Globe-Seat Valve
  • Spring loaded V-seals (chevron) packing gland system with stainless steel spindle guidance increases the operation safety
  • Flow characteristic, linear or equal percentage for many precise control applications
  • Each body size has a range of control plugs and corresponding replaceable trims for perfect sizing of a large variety of a large variety of applications ( 3- 5 per connection size)
  • Turn down ratios of 50:1, in smaller sizes 10:1 (depending on trims)
  • 3/8” – 4” Valve Size with variable orifice sizes
  • NPT, Weld , Flanged, Tri clamp ends
  • Handle up to 150 PSI steam, neutral gasses and liquids up to 232 PSI
  • 316 Stainless Steel Body
  • Seat trim Material is PTFE/ Stainless or Stainless/ Stainless
  • IP65/67- IP69k Capabilities for control tops

Bürkert Type 2301 Globe-Seat Valve Benefits:

  • High life cycles- due to the double packed stem and oscillating self centering seat
  • Low cost of ownership
  • Flexibility in system design
  • High process reliability
  • Robust in design
  • Re Breathable air- saves energy
  • Complete ownership top to bottom
  • On off to control capabilities with ease
  • Huge Weight advantage in comparison to standard Control valving
  • Teach in function on control valves (8693, 8694), and modulating (8692)
  • Component Material will not rust in wash down environment
