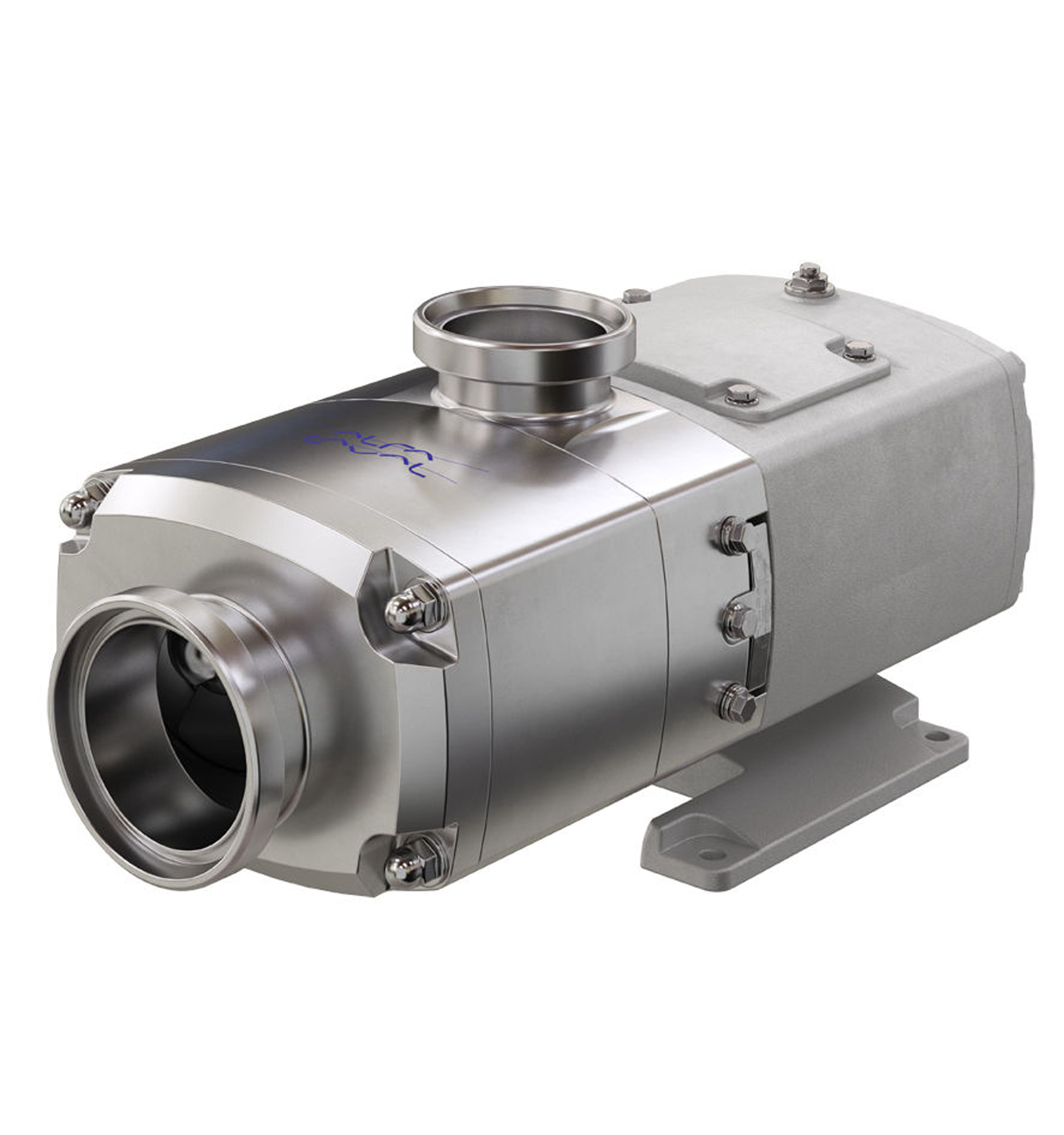

Alfa Laval Twin Screw Pump

The Alfa Laval Twin Screw Pump is ideal for use in hygienic applications in the dairy, food, beverage and personal care industries. Its quiet, virtually pulse-free, smooth and gentle operation makes the pump an excellent choice for handling sensitive products with 12 pump sizes available, there is a Alfa twin screw pump to fit your application.
Alfa Laval’s Twin Screw Pump is built on a robust, reliable platform that meets stringent hygienic standards. It is capable of handling both product transfer and Cleaning-in-Place (CIP). Its low pulsation characteristics and excellent solids handling capability reduce the risk of product damage, thereby improving product quality. Maintenance is simplified and process uptime increased.
The Twin Screw Pump from Alfa Laval features a clean, external stainless steel finish with profiled elastomers and mechanical seals fully surrounded by the product. Designed for maximum cleanability using FDA-conforming materials, the pump is both EHEDG- and 3-A certified.
The combination of optimized gearbox design and excellent hydraulic performance provides for quiet pump operation, minimizing noise emissions. Running temperature is also minimized, thereby increasing workplace safety.
Flow rates ranging from 0.5 USGPM to 591 USGPM, pressures of up to 16 bar, and solid sizes up to 43 mm.

Options:
- Single mechanical shaft seal
- Single flushed mechanical shaft seal
- Double mechanical shaft seal
- Seal faces in silicon carbide/silicon carbide or silicon carbide/carbon
- Product wetted elastomers in EPDM, FPM or FFPM
- Diffusion hardened screws
- Heating jacket
- Rectangular inlet
- Hydrostatic testing with certificate
- Reversible flow
- Bottom inlet or outlet
- Wide range of port specifications
- Direct or geared motor
- ATEX version
- Multiple MEPS
1-800-361-5361 or 705-743-5361, or sales@harco.on.ca
for more information or contact us at

SPARE PARTS
Alfa Laval OS Twin Screw Pump - Mechanical Seals
Seal Type | Description | OS22/24/26 | OS32/34/36 | OS42/44/46 |
Single Seal | Complete Single Seal SC/C EPDM | 9650209501 | 9650309501 | 9650409501 |
Single Seal | Complete Single Seal SC/C FPM | 9650209502 | 9650309502 | 9650409502 |
Single Seal | Complete Single Seal SC/C FFPM | 9650209503 | 9650309503 | 9650409503 |
Single Seal | Complete Single Seal SC/SC EPDM | 9650209511 | 9650309511 | 9650409511 |
Single Seal | Complete Single Seal SC/SC FPM | 9650209512 | 9650309512 | 9650409512 |
Single Seal | Complete Single Seal SC/SC FFPM | 9650209513 | 9650309513 | 9650409513 |
Single Flushed Seal | Complete Single Flushed Seal SC/C EPDM | 9650209551 | 9650309551 | 9650409551 |
Single Flushed Seal | Complete Single Flushed Seal SC/C FPM | 9650209552 | 9650309552 | 9650409552 |
Single Flushed Seal | Complete Single Flushed Seal SC/C FFPM | 9650209553 | 9650309553 | 9650409553 |
Single Flushed Seal | Complete Single Flushed Seal SC/SC EPDM | 9650209561 | 9650309561 | 9650409561 |
Single Flushed Seal | Complete Single Flushed Seal SC/SC FPM | 9650209562 | 9650309562 | 9650409562 |
Single Flushed Seal | Complete Single Flushed Seal SC/SC FFPM | 9650209563 | 9650309563 | 9650409563 |
Double Seal | Complete Double Seal SC/C/SC/C EPDM | 9650209571 | 9650309571 | 9650409571 |
Double Seal | Complete Double Seal SC/C/SC/C FPM | 9650209572 | 9650309572 | 9650409572 |
Double Seal | Complete Double Seal SC/C/SC/C FFPM | 9650209573 | 9650309573 | 9650409573 |
Double Seal | Complete Double Seal SC/SC/SC/C EPDM | 9650209581 | 9650309581 | 9650409581 |
Double Seal | Complete Double Seal SC/SC/SC/C FPM | 9650209582 | 9650309582 | 9650409582 |
Double Seal | Complete Double Seal SC/SC/SC/C FFPM | 9650209583 | 9650309583 | 9650409583 |
Alfa Laval OS Twin Screw Pump - Service Kit
Seal Type | Description | OS22/24/26 | OS32/34/36 | OS42/44/46 |
Single Seal | Service Kit, OSC SC/C EPDM | 9650209601 | 9650209601 | 9650209601 |
Single Seal | Service Kit, OSC SC/C FPM | 9650209602 | 9650209602 | 9650209602 |
Single Seal | Service Kit, OSC SC/C FFPM | 9650209603 | 9650209603 | 9650209603 |
Single Seal | Service Kit, OSC SC/SC EPDM | 9650209611 | 9650209611 | 9650209611 |
Single Seal | Service Kit, OSC SC/SC FPM | 9650209612 | 9650209612 | 9650209612 |
Single Seal | Service Kit, OSC SC/SC FFPM | 9650209613 | 9650209613 | 9650209613 |
Double Seal | Service Kit, OSC SC/C v SC/C EPDM | 9650209671 | 9650209671 | 9650209671 |
Double Seal | Service Kit, OSC SC/C v SC/C FPM | 9650209672 | 9650209672 | 9650209672 |
Double Seal | Service Kit, OSC SC/C v SC/C FFPM | 9650209673 | 9650209673 | 9650209673 |
Double Seal | Service Kit, OSC SC/SC v SC/C EPDM | 9650209681 | 9650209681 | 9650209681 |
Double Seal | Service Kit, OSC SC/SC v SC/C FPM | 9650209682 | 9650209682 | 9650209682 |
Double Seal | Service Kit, OSC SC/SC v SC/C FFPM | 9650209683 | 9650209683 | 9650209683 |
Service Kits for Wet End Elastomer kit- EPDM | 9650209701 | 9650209701 | 9650209701 | |
Service Kits for Wet End Elastomer kit- FPM | 9650209702 | 9650209702 | 9650209702 | |
Service Kits for Wet End Elastomer kit- FFPM | 9650209703 | 9650209703 | 9650209703 |
