SaniJet

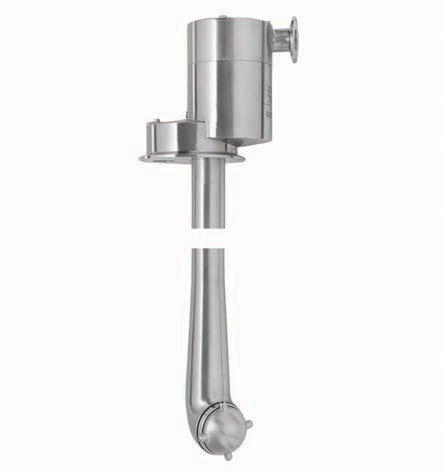

ALFA LAVAL SANIJET 20 ROTARY JET HEADS
Now available from Harco, the Alfa Laval SaniJet 20 rotary jet heads are a tank cleaning machine specifically designed for hygienic environments. Built to efficiently clean tanks with capacities ranging from 5 to 30 m³, it combines pressure and flow to generate high-impact cleaning jets that rotate in a reliable, repeatable 360-degree pattern.
Importantly, the Alfa Laval SaniJet 20 minimizes the consumption of water and cleaning media, making it an economical and eco-friendly solution. Additionally, they are easy to customize to meet specific customer requirements, enabling companies to spend less time cleaning and more time producing.
Applications
The Alfa Laval SaniJet 20 rotary jet heads are ideal for removing the toughest residues from hygienic tanks across a wide range of industries, including yeast propagation plants and food and beverage production.
Benefits:
- 60% faster cleaning = more time for production
- Saves up to 70% of your cleaning cost
- High-impact cleaning in a 360° repeatable cleaning pattern
- Cleaning process can be validated using Alfa Laval Rotacheck
Standard Design and Options:
The nozzle diameter options allow optimization of jet impact length and flow rate at the desired pressure. Alfa Laval offers a broad range of tank cleaning machines tailored to various duties and industries. For hygienic applications requiring full traceability and smooth validation, the Alfa Laval SaniJet 20 UltraPure provides similar high performance, complemented by the Alfa Laval Q-doc documentation package.
How It Works
These rotary jet heads produce a high-impact jet stream that covers the entire interior tank surface in a progressively denser 360° cleaning pattern. This creates a powerful mechanical impact using a low volume of water and cleaning media. As the cleaning fluid flows, the nozzles rotate around vertical and horizontal axes in a geared motion. During the first cycle, a coarse cleaning pattern is laid out; subsequent cycles gradually increase pattern density until the full cleaning coverage is achieved.
Contact Harco today to learn more or request a quote for Alfa Laval SaniJet 20 rotary jet head solutions—maximize your cleaning efficiency while reducing costs.
For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]
