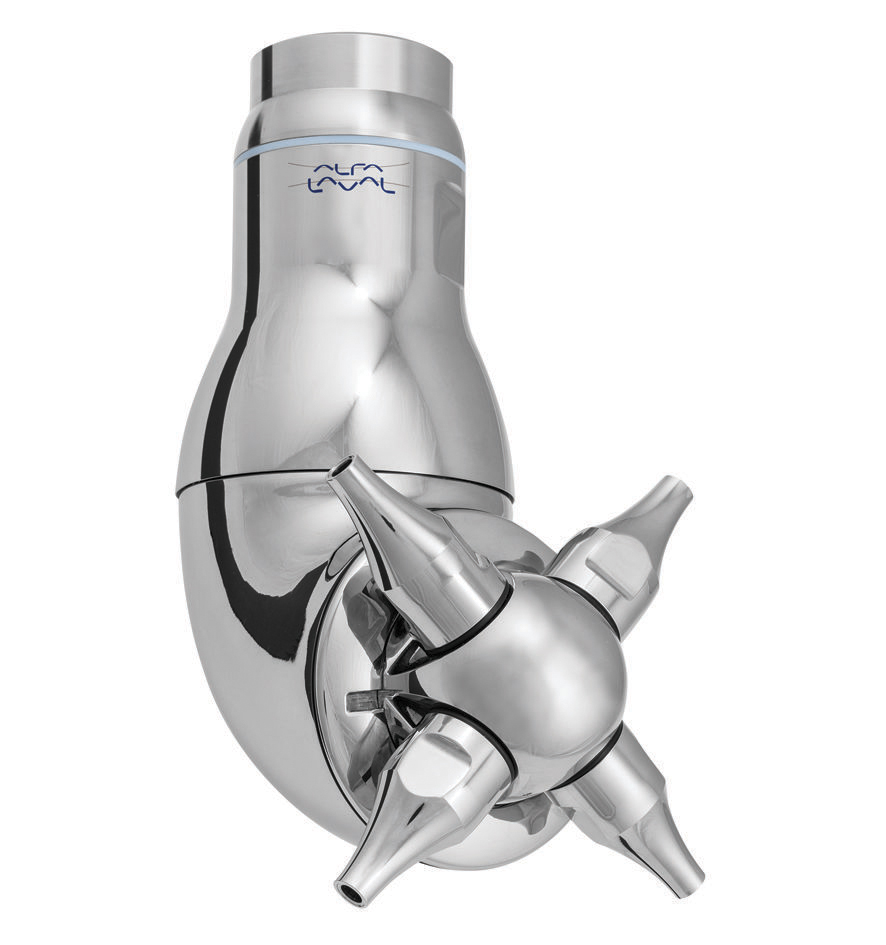

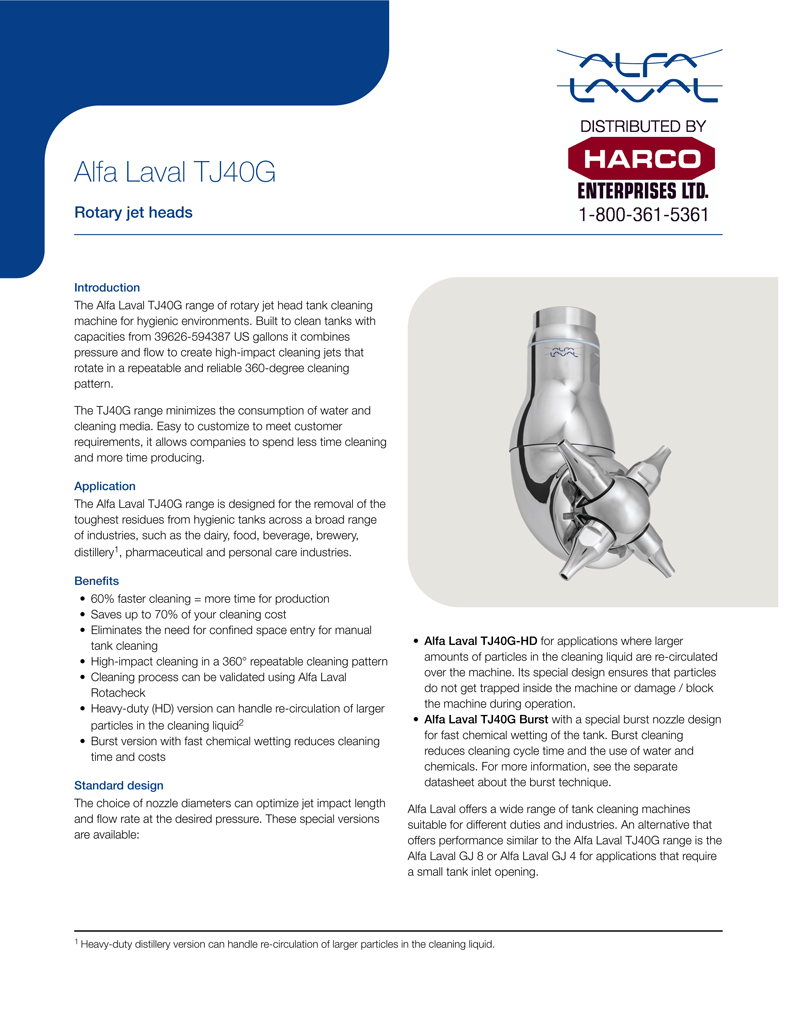

ALFA LAVAL TJ40G ROTARY JET HEADS
Now available through Harco, the Alfa Laval TJ40G rotary jet heads range of tank cleaning devices are designed for hygienic applications that demand reliable, repeatable, and high-impact cleaning. Built to clean tanks ranging from 150 to 2250 m³ (39,626–594,387 US gallons), these machines combine pressure and flow to generate powerful jets that deliver a complete 360-degree cleaning pattern.
Designed to maximize efficiency, the Alfa Laval TJ40G minimizes water and cleaning media consumption while reducing downtime. Customizable to suit specific plant requirements, it enables companies to spend less time cleaning and more time producing.
Applications
The Alfa Laval TJ40G rotary jet heads are designed for use in hygienic tank cleaning across a wide range of industries, including dairy, food, beverage, brewery, distillery, pharmaceutical, and personal care. It is ideal for removing tough residues and ensuring consistent, high-impact cleaning in sanitary processing environments.
Key Benefits
- 60% faster cleaning = more time for production
- Saves up to 70% of your cleaning cost
- Eliminates the need for confined space entry for manual tank cleaning
- High-impact cleaning in a 360° repeatable cleaning pattern
- Cleaning process can be validated using Alfa Laval Rotacheck
- Heavy-duty (HD) version can handle re-circulation of larger particles in the cleaning liquid
- Burst version with fast chemical wetting reduces cleaning time and costs
Standard Design Options
Nozzle diameters can be selected to optimize jet impact and flow rate at your required operating pressure. The TJ40G range includes two specialized configurations:
- Alfa Laval TJ40G-HD for applications where larger amounts of particles in the cleaning liquid are re-circulated over the machine. Its special design ensures that particles do not get trapped inside the machine or damage / block the machine during operation.
- Alfa Laval TJ40G Burst with a special burst nozzle design for fast chemical wetting of the tank. Burst cleaning reduces cleaning cycle time and the use of water and chemicals.
For applications requiring a smaller tank inlet opening, consider alternatives such as the Alfa Laval GJ 8 or Alfa Laval GJ 4.
Working Principle
The Alfa Laval TJ40G rotary jet head produces a high-impact jet stream that cleans the entire tank interior in a progressively denser pattern. The cleaning fluid causes the nozzles to rotate on both vertical and horizontal axes, creating a coarse cleaning pattern in the first cycle. With each successive cycle, the pattern becomes denser until full 360° coverage is achieved. Once the cycle completes, the system automatically restarts, ensuring continuous and thorough cleaning with minimal water and media usage.
Interested in improving hygiene, reducing cleaning time, and saving operational costs?
Contact Harco today to learn how the Alfa Laval TJ40G rotary jet head can transform your tank cleaning operations.
For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]
