Ball Valves

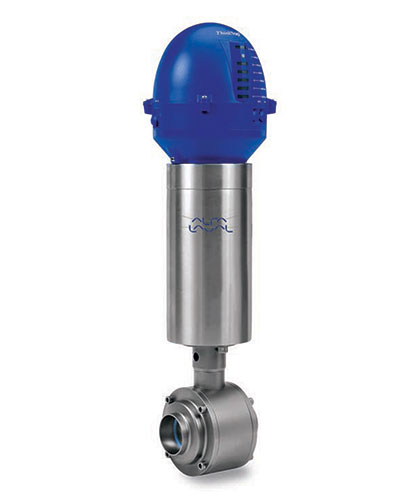

Alfa Laval Sanitary Ball Valves

Alfa Laval’s sanitary ball valves (SBVs) are full-bore flow valves that provide on/off control with minimal pressure drop. The valve opening has a constant pipeline diameter, which enables fluids to flow freely through the valves when open. Flow restriction is comparable to that of a straight tube.

This makes the SBVs suitable for:

  • Handling fluids that are viscous or contain solid, semi-solid or abrasive particles
  • Use wherever pigging of process lines is a major consideration
  • Applications that require gentle product treatment
  • Clean-in-Place applications

Easy to build into most process lines, Alfa Laval SBVs feature a straightforward floating ball design, which guarantees a tight seal and permits axial movement while preventing rotation. They are water hammer-safe and completely insensitive to pressure shocks in the pipelines.

Spring-loaded, self-adjusting seal rings provide highly reliable valve stem sealing. SBVs with automated control have inspection holes in the bonnet for easy inspection of the stem seal. Alfa Laval SBV parts also are available.

Click here for more information.

Click here for more information.

SERVICE KITS

Alfa Laval 5308 Ball Valve Service Kits
Material 1/2″ 3/4″ 1″ 1.5″
PTFE 9613830052 9613830064 9613830048 9613830044



Material 2″ 2.5″ 3″ 4″
PTFE 9613830056 N/A 9613830060 9613830068
