AMPCO LC/LF/LD SERIES CENTRIFUGAL PUMPS
Harco offers three lines of centrifugal pumps from Ampco to meet all your sanitary needs. Ampco created the LC, LF, and LD pump lines to be interchangeable with Fristam’s FPX, FPR, and FP models; they’re functionally and hydraulically identical to Fristam’s products.
These Ampco LC/LF/LD Series Centrifugal Pumps feature heavy-duty cast construction and high efficiency. All models feature a 304 stainless-steel adapter and conform to 3-A sanitary standards.
AMPCO LC SERIES CENTRIFUGAL PUMPS
Ampco’s LC Series pumps are a tried and true single mechanical seal design. This simplistic style centrifugal pump is one of the most commonly installed pumps in the world.
The LC Series pumps from Ampco are cast and machined from 316L stainless steel and offers a 304 stainless steel adapter as a standard.
Manufactured using heavy wall construction for durability, Ampco’s LC pumps are used for gentle and efficient applications, such as beverage and dairy.
Ampco’s LC Series pumps are dimensionally and hydraulically interchangeable with Fristam’s FPX. The internal seal design, along with the balanced impeller, allows the Ampco LC pump smooth quiet operation while extending seal longevity. Contact Harco for your Ampco LC Pump or LC replacement part inquires.
for more information or contact us at 1-800-361-5361 or 705-743-5361, or sales@harco.on.ca
AMPCO LD SERIES CENTRIFUGAL PUMPS
Ampco’s LD Series pumps are a close-coupled version of the Ampco LC Series, using a double mechanical seal. This simplistic, hardworking centrifugal pumps are exclusive to Ampco Pumps.
Cast and machined from 316L stainless steel and offering a 304 stainless steel adapter, the Ampco LD Series pumps double-seal design handles sticky, abrasive and sugary products. These pumps use a buffer fluid and is designed to be easier to maintain because of its fewer components.
The Ampco LD pumps are used with abrasive or volatile products, and in vacuum applications.
Ampco’s LD Series pumps are dimensionally and hydraulically interchangeable with Fristam’s FP.
Contact Harco for your Ampco LD Pump or LD replacement part inquires.
for more information or contact us at 1-800-361-5361 or 705-743-5361, or sales@harco.on.ca

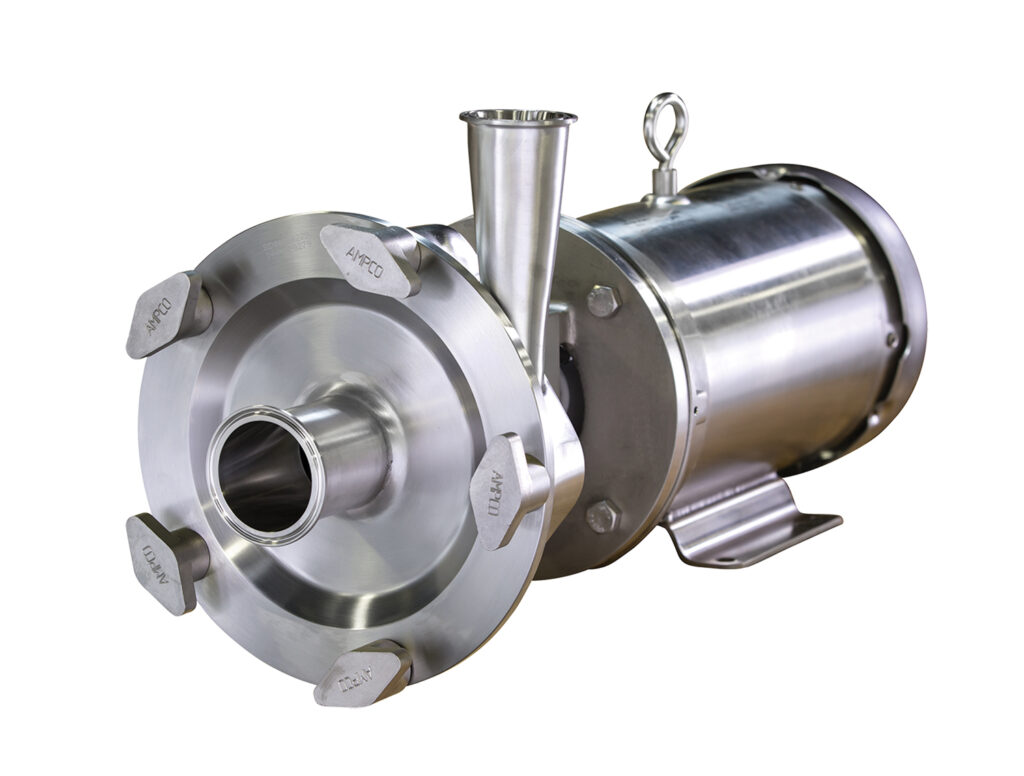

AMPCO LF SERIES CENTRIFUGAL PUMPS
Ampco’s LF Series centrifugal pumps are designed with a unique front-loading seal for easy maintenance and improved cleanability.
While seal designs in competitor pumps leak due to product build-up when processing tacky or sticky products, the specially designed Ampco LF seal eliminates this problem area by removing the traditional O-ring groove and dead zone. The innovative design of the Ampco LF seal offers a semi-exposed O-ring allowing the product to flow freely through previously restricted areas, eliminating build-up.
The Ampco LF seal design is easy to assemble. Exclusive to the Ampco LF pumps, the rotating seal stays retained in the driver during the assembly process, too.
Balanced impellers, a self-aligning shaft design and tight manufacturing tolerances, minimize vibration and improve seal life, making the LF pumps from Ampco a preferred choice for difficult-to-handle products.
Ampco’s LF Series centrifugal pumps are dimensionally and hydraulically interchangeable with Fristam’s FPR. Ampco LF pump spare parts are available. Contact Harco for your Ampco LF Pump or LF replacement part inquires.
for more information or contact us at 1-800-361-5361 or 705-743-5361, or sales@harco.on.ca
SPARE PARTS FOR LC/LD
Ampco LC/LD Seal Kits #633
| Seal # | Shaft Size | Part # | Description |
| 633 | 18 mm | GS2600002-SC | Single Seal: Silicon carbide / Carbon / Viton (C / N / V) |
| 633 | 18 mm | GS2600002-SC/TC | Single Seal: Silicon carbide / Carbon / Viton – New Design Tapered Carbon (C / N / V) |
| 633 | 18 mm | GS2600002-CO | Single Seal: Chrome oxide / Carbon / Viton (FR / N / V) |
| 633 | 18 mm | GS2600005 | Single Seal: Silicon carbide / Silicon carbide / Viton (C / C / V) |
| 633 | 18 mm | GS2600135 | Single Seal: Chrome oxide / Silicon Carbide / Viton (FR / C / V) |
| 633 | 18 mm | GS2600000-SC | Double Seal: Silicon carbide / Carbon / Ceramic / Viton (C / N / CE / V) |
| 633 | 18 mm | GS2600006 | Double Seal: Silicon carbide / Silicon carbide / Silicon carbide / Viton (C / C / C / V) |
| 633 | 18 mm | GS2600140 | Double Seal: Chrome oxide / Silicon carbide / Ceramic / Viton (FR / C / CE / V) |
| 633 | 18 mm | GS15600000 | Stationary Carbon |
Ampco LC/LD Seal Kits #735
| Seal # | Shaft Size | Part # | Description |
| 735 | 22 mm | GS2600127-SC | Single Seal: Silicon carbide / Carbon / Viton (C / N / V) |
| 735 | 22 mm | GS2600127-SC/TC | Single Seal: Silicon carbide / Carbon / Viton -New Design Tapered Carbon (C / N / V) |
| 735 | 22 mm | GS2600127-CO | Single Seal: Chrome Oxide / Carbon / Viton (FR / N / V) |
| 735 | 22 mm | GS2600143 | Single Seal: Chrome oxide / Silicon Carbide / Viton (FR / C / V) |
| 735 | 22 mm | GS2600129 | Single Seal: Silicon carbide / Silicon carbide / Viton (C / C / V) |
| 735 | 22 mm | GS2600128-SC | Double Seal: Silicon carbide / Carbon / Ceramic / Viton (C / N / CE / V) |
| 735 | 22 mm | GS2600130 | Double Seal: Silicon carbide / Silicon carbide / Silicon carbide / Viton (C / C / C / V) |
| 735 | 22 mm | GS2600128 | Double Seal: Chrome oxide / Carbon / Ceramic / Viton (FR / N / CE / V) |
| 735 | 22 mm | GS15600008 | Stationary Carbon |
Ampco LC/LD Seal Kits #736
| Seal # | Shaft Size | Part # | Description |
| 736 | 30 mm | GS2600009-SC | Single Seal: Silicon carbide / Carbon / Viton (C / N / V) |
| 736 | 30 mm | GS2600009-SC/TC | Single Seal: Silicon carbide / Carbon / Viton – New Design Tapered Carbon (C / N / V) |
| 736 | 30 mm | GS2600009-CO | Single Seal: Chrome Oxide / Carbon / Viton (FR / N / V) |
| 736 | 30 mm | GS2600141 | Single Seal: Chrome oxide / Silicon Carbide / Viton (FR / C / V) |
| 736 | 30 mm | GS2600132 | Single Seal: Silicon carbide / Silicon carbide / Viton (C / C / V) |
| 736 | 30 mm | GS2600131-SC | Double Seal: Silicon carbide / Carbon / Ceramic / Viton (C / N / CE / V) |
| 736 | 30 mm | GS2600139 | Double Seal: Silicon carbide / Silicon carbide / Silicon carbide / Viton (C / C / C / V) |
| 736 | 30 mm | GS2600131 | Double Seal: Chrome oxide / Carbon / Ceramic / Viton (FR / N / CE / V) |
| 736 | 30 mm | GS15600047 | Stationary Carbon |
Mechanical Seal Kits Include
Mechanical seal, seal gaskets, seal O-rings, and impeller nut gasket
Casing gaskets must be purchased separately.
Seal Details
C = Silicon carbide
N = Carbon
CE = Ceramic
V = Viton
FR = Chrome oxide
SPARE PARTS FOR LF
LF Mechanical Seal Replacement Kits - #757 - New Design
| Seal # | Shaft Size | Part # | Description |
| 757 | 22 mm | GS02600639-ND | Single Seal: Silicon carbide / Silicon carbide / Viton (C / C / V) |
| 757 | 22 mm | GS02600651-ND | Single Seal: Silicon carbide / Carbon / Viton (C / N / V) |
| 757 | 22 mm | GS02600640-ND | Double Seal: Silicon carbide / Silicon carbide / Carbon / Viton (C / C / N / V) |
| 757 | 22 mm | GS02600775-ND | Double Seal: Carbon / Silicon carbide / Carbon / Viton (N / C / N / V) |
LF Mechanical Seal Replacement Kits - #758 - New Design
| Seal # | Shaft Size | Part # | Description |
| 758 | 30 mm | GS02600641-ND | Single Seal: Silicon carbide / Silicon carbide / Viton (C / C / V) |
| 758 | 30 mm | GS02600653-ND | Single Seal: Silicon carbide / Carbon / Viton (C / N / V) |
| 758 | 30 mm | GS02600642-ND | Double Seal: Silicon carbide / Silicon carbide / Carbon / Viton (C / C / N / V) |
| 758 | 30 mm | GS02600812-ND | Double Seal: Carbon / Silicon carbide / Carbon / Viton |
LF Mechanical Seal Replacement Kits - #757
| Seal # | Shaft Size | Part # | Description |
| 757 | 22 mm | GS02600639 | Single Seal: Silicon carbide / Silicon carbide / Viton (C / C / V) |
| 757 | 22 mm | GS02600651 | Single Seal: Chrome oxide / Carbon / Viton (CO / N / V) |
| 757 | 22 mm | GS02600651-SC | Single Seal: Silicon carbide / Carbon / Viton (C / N / V) |
| 757 | 22 mm | GS02600678 | Single Seal: Chrome oxide / Silicon Carbide / Viton (CO / C / V) |
| 757 | 22 mm | GS02600640 | Double Seal: Silicon carbide / Silicon carbide / Silicon carbide / Viton (C / C / C / V) |
| 757 | 22 mm | GS02600775 | Double Seal: Chrome oxide / Carbon / Silicon carbide / Viton (CO / N / C / V) |
| 757 | 22 mm | GS02600695 | Double Seal: Chrome oxide / Silicon carbide / Silicon carbide / Viton (CO / C / C / V) |
LF Mechanical Seal Replacement Kits - #758
| Seal # | Shaft Size | Part # | Description |
| 758 | 30 mm | GS02600641 | Single Seal: Silicon carbide / Silicon carbide / Viton (C / C / V) |
| 758 | 30 mm | GS02600653 | Single Seal: Chrome Oxide / Carbon / Viton (CO / N / V) |
| 758 | 30 mm | GS02600653-SC | Single Seal: Silicon carbide / Carbon / Viton (C / N / V) |
| 758 | 30 mm | GS02600680 | Single Seal: Chrome oxide / Silicon Carbide / Viton (CO / C / V) |
| 758 | 30 mm | GS02600642 | Double Seal: Silicon carbide / Silicon carbide / Silicon carbide / Viton (C / C / C / V) |
| 758 | 30 mm | GS02600812 | Double Seal: Chrome oxide / Carbon / Silicon carbide / Viton (CO / N / C / V) |
| 758 | 30 mm | GS02600681 | Double Seal: Chrome oxide / Silicon carbide / Silicon carbide / Viton (CO / C / C / V) |
LF Mechanical Seal Replacement Kits - #102
| Seal # | Shaft Size | Part # | Description |
| 102 | 35mm | GS02600422-SC | Single Seal: Silicon carbide / Carbon / Viton (C / N / V) |
| 102 | 35mm | GS02600424 | Single Seal: Silicon carbide / Silicon carbide / Viton (C / C / V) |
| 102 | 35mm | GS02600423-SC | Double Seal: Silicon Carbide / Carbon / Silicon carbide / Viton (C / N / C / V) |
| 102 | 35mm | GS02600425 | Double Seal: Silicon carbide / Silicon carbide / Silicon carbide / Viton (C / C / C / V) |
