SaniJet

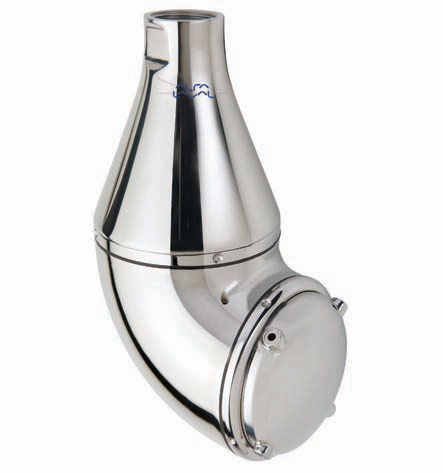

ALFA LAVAL SANIJET 25 ROTARY JET HEADS
Now available from Harco, the Alfa Laval SaniJet 25 rotary jet heads are a high-performance tank cleaning machine designed specifically for hygienic environments. Engineered to clean tanks with capacities between 15 and 150 m³ (3963–39626 US gallons), it combines flow and pressure to produce high-impact cleaning jets that rotate in a reliable and repeatable 360-degree cleaning pattern. The SaniJet 25 minimizes water and cleaning media usage, and its customizable design helps companies reduce downtime and increase production efficiency.
Application
The Alfa Laval SaniJet 25 rotary jet heads are specifically designed to remove even the most stubborn residues from hygienic tanks across a wide range of industries. It is particularly effective in applications within the dairy, brewery, food, and beverage sectors, where cleanliness and efficiency are critical.
Benefits:
- 60% faster cleaning = more time for production
- Saves up to 70% on cleaning costs
- Eliminates the need for confined space entry for manual tank cleaning
- High-impact cleaning in a 360° repeatable cleaning pattern
- Cleaning process can be validated using Alfa Laval Rotacheck
Standard Design
To further optimize cleaning efficiency, users can choose from a variety of nozzle diameters to match their desired jet impact length and flow rate. Alfa Laval provides a broad selection of tank cleaning machines tailored to various duties and industries. For applications that demand full traceability and streamlined validation, the Alfa Laval SaniJet 25 UltraPure is a comparable alternative, offering complete documentation through the Alfa Laval Q-doc package.
Working Principle
The Alfa Laval SaniJet 25 operates by directing a high-impact jet stream in a 360° cleaning pattern that becomes progressively denser with each cleaning cycle. The flow of cleaning fluid drives the nozzles in a geared rotation along both vertical and horizontal axes. During the first cycle, the system lays down a coarse spray pattern; with each successive cycle, the pattern grows denser until full coverage is achieved. Once the cycle is complete, the machine automatically begins the next full cleaning sequence, ensuring consistent and thorough cleaning with minimal water and media use.
Contact Harco today to learn more or request a quote for the Alfa Laval SaniJet 25 rotary jet head—maximize your tank cleaning performance while reducing costs and downtime.
For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]
