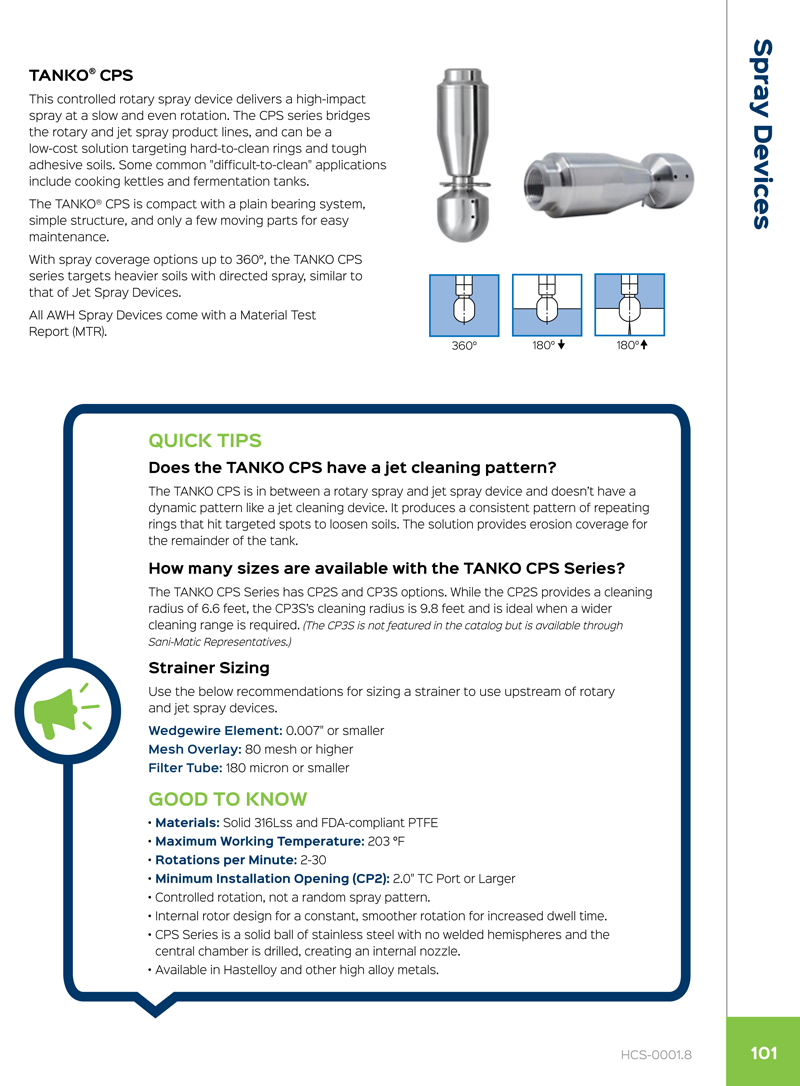

TANKO® CPS

SANI-MATIC TANKO® CPS ROTARY SPRAY HEADS

Now available from Harco, the Sani-Matic TANKO® CPS rotary spray head by AWH delivers high-impact tank cleaning at a slow, controlled rotation, making it ideal for tackling tough, adhesive soils. Bridging the gap between rotary and jet spray technologies, the Sani-Matic TANKO® CP Series (CPS) offers a cost-effective CIP solution for hard-to-clean areas such as cooking kettles, fermentation tanks, and vessels with stubborn residue.

The Sani-Matic CP series features a compact, robust spray head design with a plain bearing system and minimal moving parts for simplified maintenance. Its internal rotor mechanism ensures consistent, smooth rotation and extended dwell time, providing targeted spray coverage up to 360°—much like jet spray devices.

Key Features:

Materials: Solid 316L stainless steel and FDA-compliant PTFE
Maximum Working Temperature: 203 °F
Controlled rotation: 2–30 RPM (not a random spray pattern)
Minimum Installation Opening (CP2):0″ Tri-Clamp port or Larger Controlled rotation, not a random spray pattern
Solid stainless-steel ball with no welded hemispheres; central chamber is drilled to create an internal nozzle
Internal rotor design ensures smooth, consistent rotation and longer dwell time
Available in two options: CP2S offers a 6.6 ft cleaning radius; CP3S offers a 9.8 ft radius for larger coverage needs
Available in Hastelloy and other high-alloy metals
