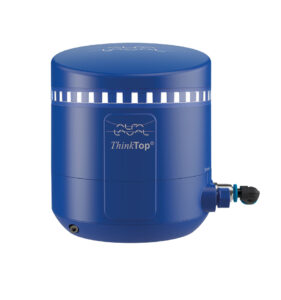

ALFA LAVAL THINKTOP® V50 – INTELLIGENT, HYGIENIC VALVE CONTROL FOR MAXIMUM EFFICIENCY
Compact, Reliable Valve Sensing and Control for Hygienic Applications
Now available from Harco, the Alfa Laval ThinkTop® V50 control top is a compact, intelligent valve control unit designed for diaphragm, butterfly, and single seat valves. Ideal for use in the dairy, food, beverage, brewery, and pharmaceutical industries, the ThinkTop® V50 from Alfa Laval simplifies setup, improves process visibility, and enhances production efficiency.
Built on Alfa Laval’s trusted V-series platform, this single-sensor solution supports 0 or 1 solenoid valve, making it an adaptable, plug-and-play unit that ensures reliable performance across a wide range of hygienic valve configurations.
Key Benefits of the Alfa Laval ThinkTop® V50 Control Top
- Auto Setup and Live Setup – Automatic valve recognition and fast configuration with the push of a button
- Pulse seat clean function – Save up to 95% of CIP liquid during drain valve cleaning cycles on AS-i and IO-Link models
- Compact and retrofittable – Slim design and included adapter make the V50 easy to retrofit to existing Alfa Laval valves
- Continuous monitoring – Built-in self-diagnostics provide 24/7 valve status updates for predictive maintenance
- 360° LED status indication – Bright, visible status from all angles for enhanced process insight
- Robust, hygienic design – Vibration-proof and IP69K-rated for durability in washdown environments
- Tool-free setup – No adapters, special tools, or cover screws required; color-coded air hoses simplify installation
Smarter Control, Faster Setup
Commissioning the Alfa Laval ThinkTop® V50 is effortless. With just the “Select” and “Enter” buttons, the Auto Setup feature instantly detects the valve type and number of solenoid valves, completing configuration within seconds. Alternatively, operators can use Live Setup for remote programming without removing the control head, offering even more flexibility.
Thanks to Flex Setup, custom configurations are also possible when integrating into unique processing environments.
How It Works
Alfa Laval’s ThinkTop® V50 converts electrical PLC signals into mechanical energy to energize or de-energize the air-operated valve, using a single sensor target mounted on the valve stem. It delivers precise control and feedback for diaphragm, butterfly, and single seat valves, streamlining operations and improving system uptime.
Whether you are upgrading legacy ThinkTop® models or installing a new valve control system, the Alfa Laval ThinkTop® V50 is fully interchangeable and compatible with existing Alfa Laval valve setups—ensuring a smooth transition and long-term performance.
Ready to modernize your valve control system?
Contact Harco today to request a quote or learn more about how the Alfa Laval ThinkTop® V50 control top can enhance efficiency and hygiene in your process line.
For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]
Watch this animation to learn about the operating principles of Alfa Laval ThinkTop® V50 and V70.
ThinkTop® V50 Units
Alfa Laval ThinkTop® V50 Digital PNP
| Part # | Supply Control board | Main entry | Solenoid valve | Air hose connection | Solenoid type |
| 9615400401 | 24 VDC | Cable gland | 0 | ||
| 9615400403 | 24 VDC | Cable gland | 1 | ø6mm | 2-Mar |
| 9615400405 | 24 VDC | Cable gland | 1 | 1/4″ | 2-Mar |
| 9615400402 | 24 VDC | M12 plug | 0 | ||
| 9615400404 | 24 VDC | M12 plug | 1 | ø6mm | 2-Mar |
| 9615400406 | 24 VDC | M12 plug | 1 | 1/4″ | 2-Mar |
Alfa Laval ThinkTop® V50 AS-Interface v2.1, 31 node
| Part # | Supply Control board | Main entry | Solenoid valve | Air hose connection | Solenoid type |
| 9615400407 | 29.5 -31.6 VDC | Cable gland | 0 | ||
| 9615400409 | 29.5 -31.6 VDC | Cable gland | 1 | ø6mm | 2-Mar |
| 9615400411 | 29.5 -31.6 VDC | Cable gland | 1 | 1/4″ | 2-Mar |
| 9615400408 | 29.5 -31.6 VDC | M12 plug | 0 | ||
| 9615400410 | 29.5 -31.6 VDC | M12 plug | 1 | ø6mm | 2-Mar |
| 9615400412 | 29.5 -31.6 VDC | M12 plug | 1 | 1/4″ | 2-Mar |
Alfa Laval ThinkTop® V50 AS-Interface v3.0, 62 node
| Part # | Supply Control board | Main entry | Solenoid valve | Air hose connection | Solenoid type |
| 9615400413 | 29.5 -31.6 VDC | Cable gland | 0 | ||
| 9615400415 | 29.5 -31.6 VDC | Cable gland | 1 | ø6mm | 2-Mar |
| 9615400417 | 29.5 -31.6 VDC | Cable gland | 1 | 1/4″ | 2-Mar |
| 9615400414 | 29.5 -31.6 VDC | M12 plug | 0 | ||
| 9615400416 | 29.5 -31.6 VDC | M12 plug | 1 | ø6mm | 2-Mar |
| 9615400418 | 29.5 -31.6 VDC | M12 plug | 1 | 1/4″ | 2-Mar |
Alfa Laval ThinkTop® V50 Digital IO-Link
| Part # | Supply Control board | Main entry | Solenoid valve | Air hose connection | Solenoid type |
| 9615400419 | 24 VDC | M12 plug | 0 | ||
| 9615400420 | 24 VDC | M12 plug | 1 | ø6mm | 2-Mar |
| 9615400421 | 24 VDC | M12 plug | 1 | 1/4″ | 2-Mar |
