Ampco In-Tank Mixers
AMPCO IN-TANK MIXERS
Harco proudly supplies two high-performance In-Tank Mixers from Ampco Applied Products—the JET-shear and the JET-mix. These advanced agitators are engineered for fast, consistent mixing and are ideal for a wide range of applications in the food, personal care, chemical, and pharmaceutical industries.
High-Efficiency In-Tank Mixing
Designed to be installed directly into open or closed tanks, drums, or totes, Ampco In-Tank Mixers use rotating impellers with various shear blade options to handle everything from batch mixing to large-scale processing. Whether you need to hydrate, dissolve, homogenize, disperse, or emulsify, Ampco delivers precise results with maximum efficiency.
- The JET-shear delivers high-shear mixing with multiple work head options and cuts mixing time by up to 70%.
- The JET-mix excels in rapid blending applications, including hold tanks, suspension tanks, and general storage tanks.
Flexible Mounting Options
To ensure a seamless fit into your production process, custom tank mounting solutions and stand options are available for all models.
No matter the product requirements, Ampco’s Applied Products line offers customized in-tank mixing solutions tailored to your application.

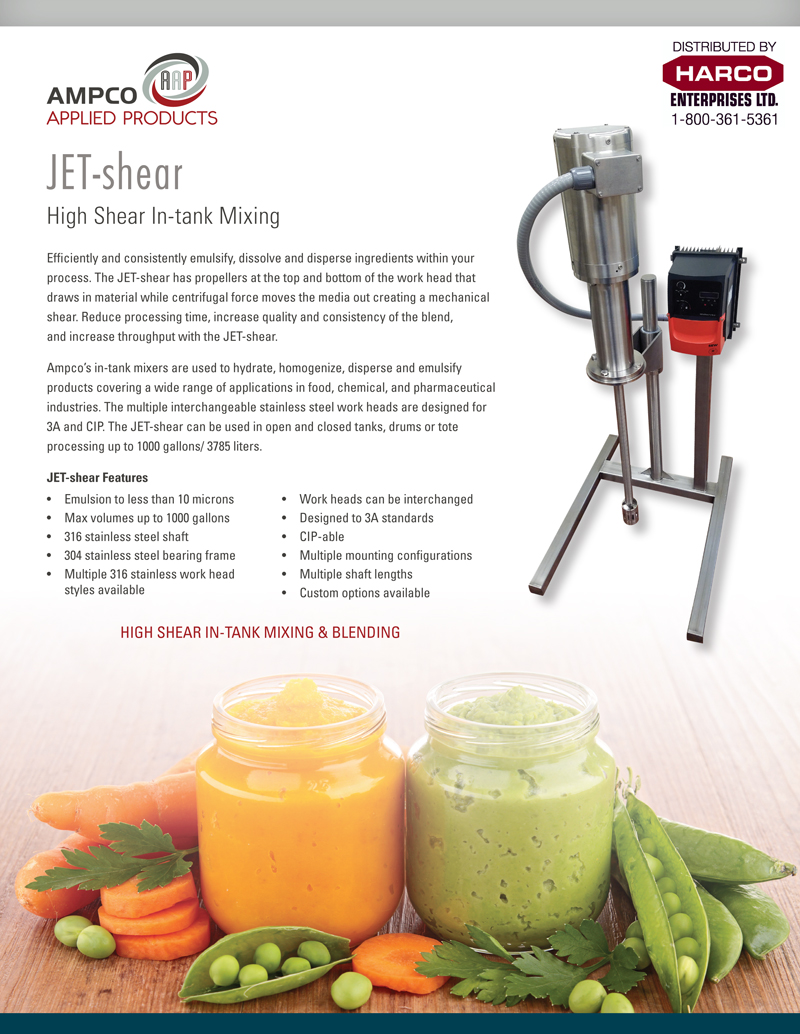

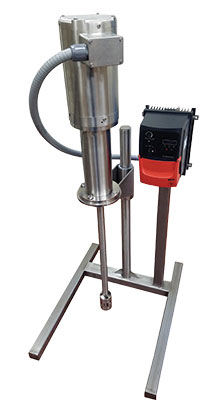

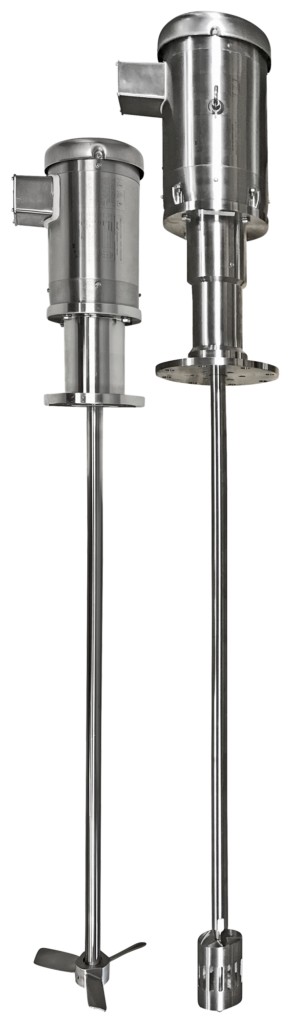

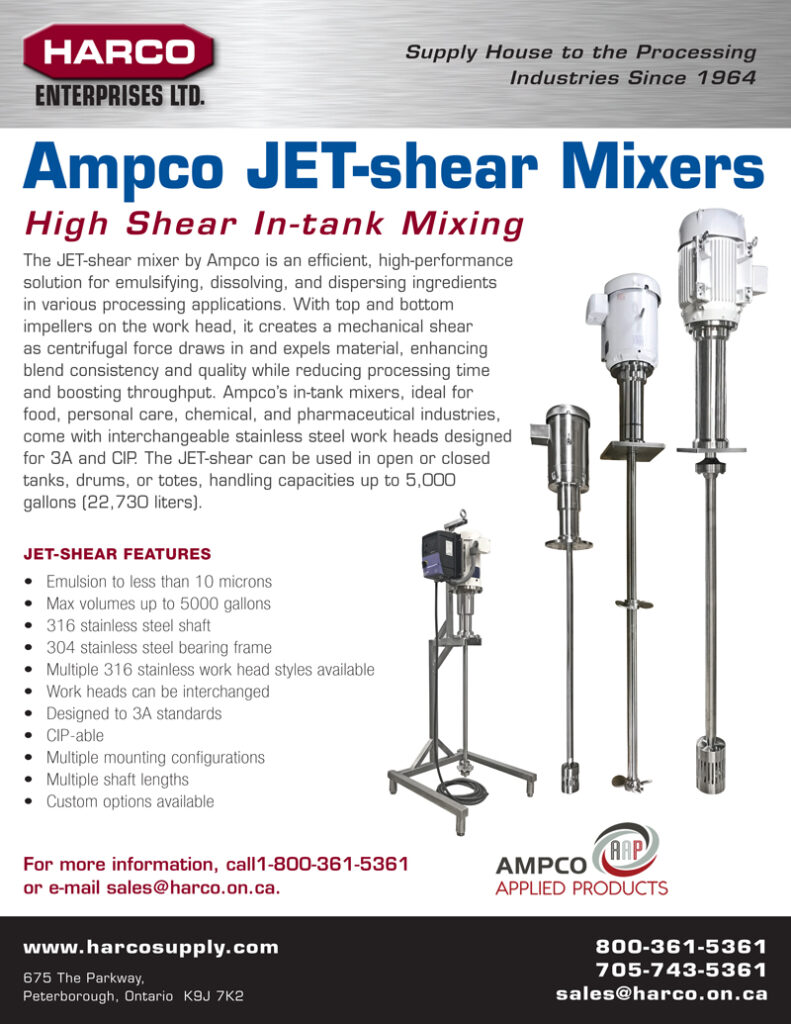

AMPCO JET-shear MIXERS
High Shear In-tank Mixing & Blending
Ampco’s High Shear In-tank JET-shear mixers are used to hydrate, dissolve, homogenize, disperse and emulsify products consistently and efficiently. It covers a wide range of applications in the food, personal care, chemical, and pharmaceutical industries. The multiple interchangeable stainless steel work heads are designed for 3A and CIP.
Used in open and closed tanks, drums or totes, Ampco’s JET-shear in-tank mixer creates smooth consistent blends in tanks as large as 5000 gallons / 22730 liters.
The Ampco JET-shear mixers have propellers at the top and bottom of the work head that draws in material while centrifugal force moves the media out creating a mechanical shear. Reduce processing time, increase quality and consistency of the blend, and increase throughput with the Ampco JET-shear mixers.
Much more than an in-tank agitator, the Ampco JET-shear mixer is capable of creating emulsions under 10 microns.
Ampco JET-shear Features
- Emulsion to less than 10 microns
- Max volumes up to 5000 gallons
- 316 stainless steel shaft
- 304 stainless steel bearing frame
- Multiple 316 stainless work head styles available
- Work heads can be interchanged
- Designed to 3A standards
- CIP-able
- Multiple mounting configurations
- Multiple shaft lengths
- Custom options available

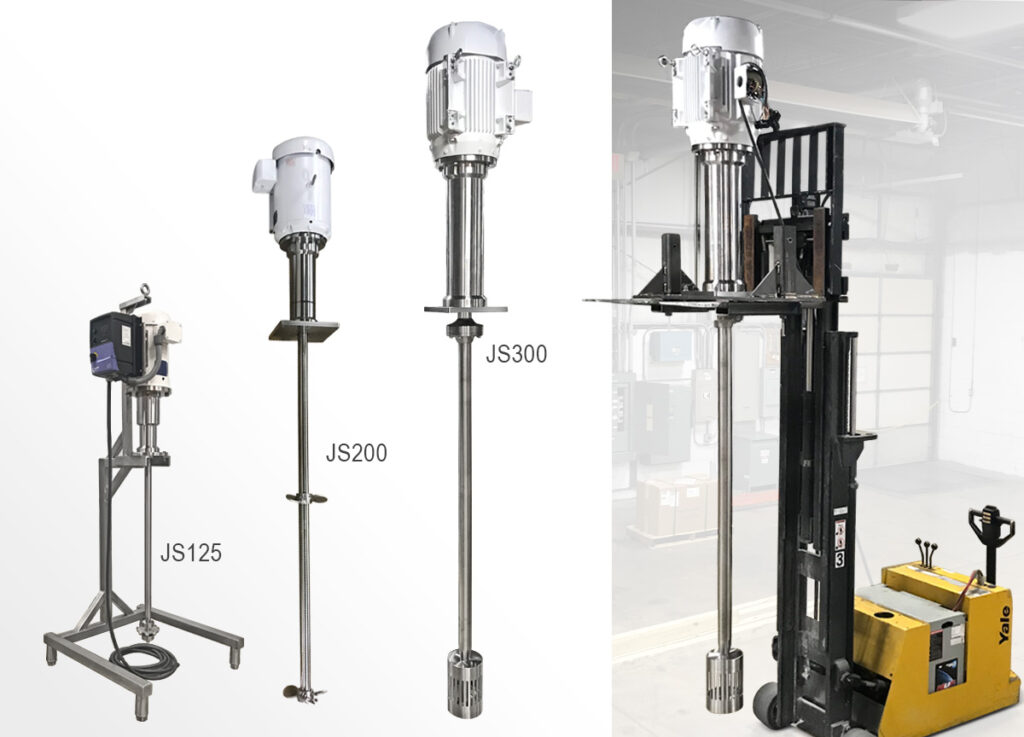

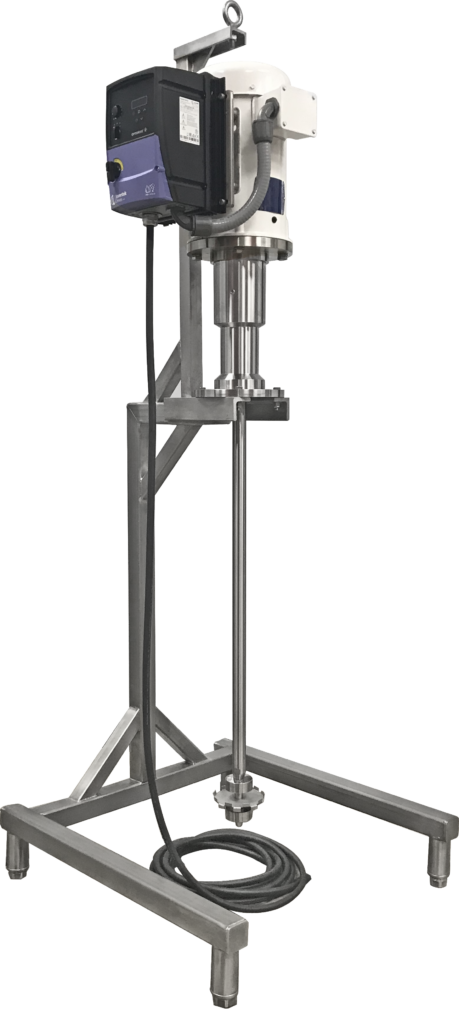

Mounting Options
In-tank mixing applications require versatile mounting solutions. Whatever the size of your tank, drive type, or specific processing needs, we provide custom stands and tank mounting options to ensure maximum flexibility.

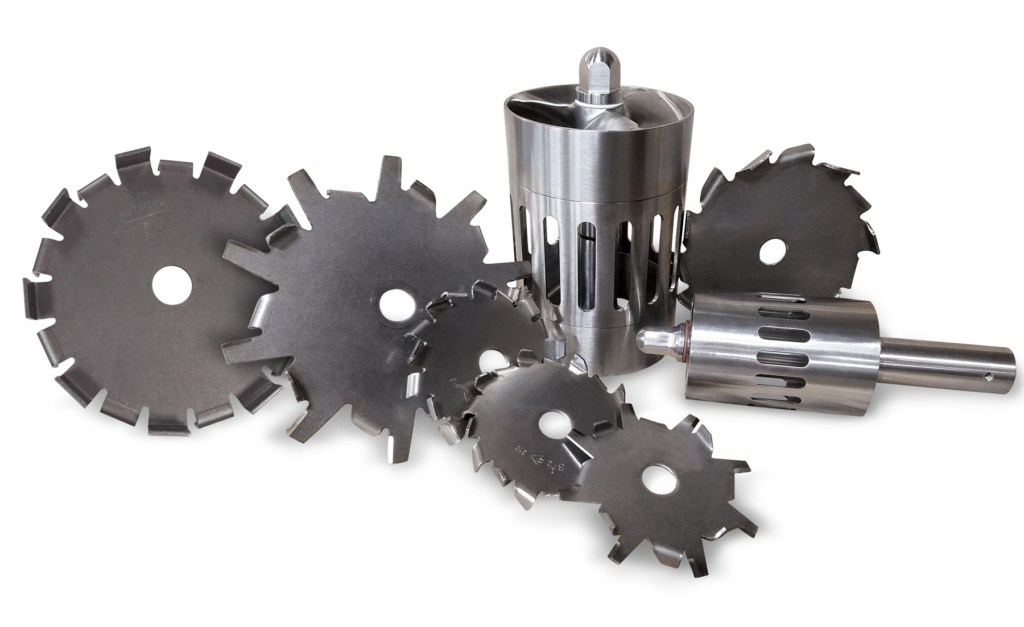

Work Head Options
Choosing the right work head or work head combination is essential for optimizing your process. We offer a broad range of interchangeable work heads and work head combinations designed for maximum flexibility and efficiency across applications, including:
- Mixing
- Dispersing
- Hydration
- De-agglomeration
- Particle Size Reduction
- Emulsification
For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]

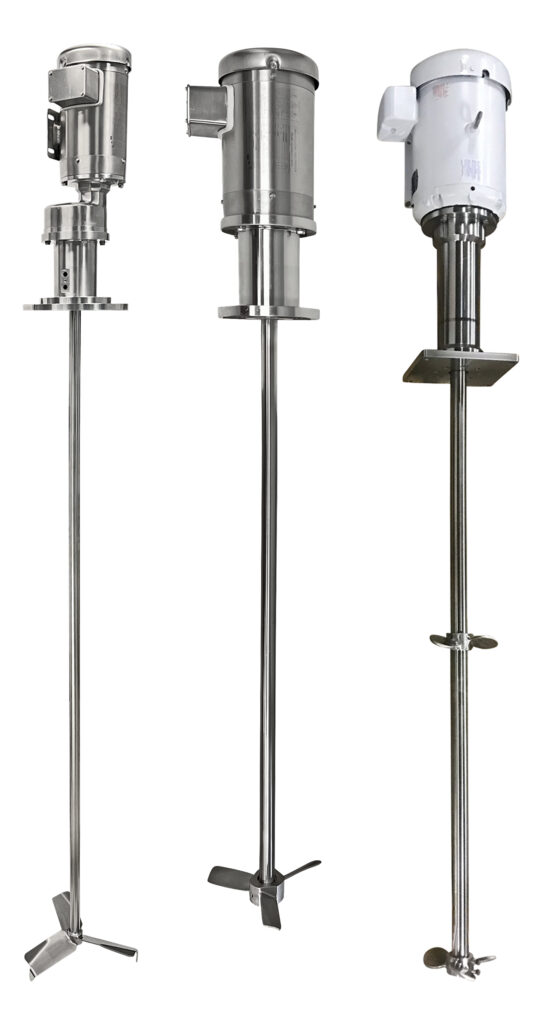

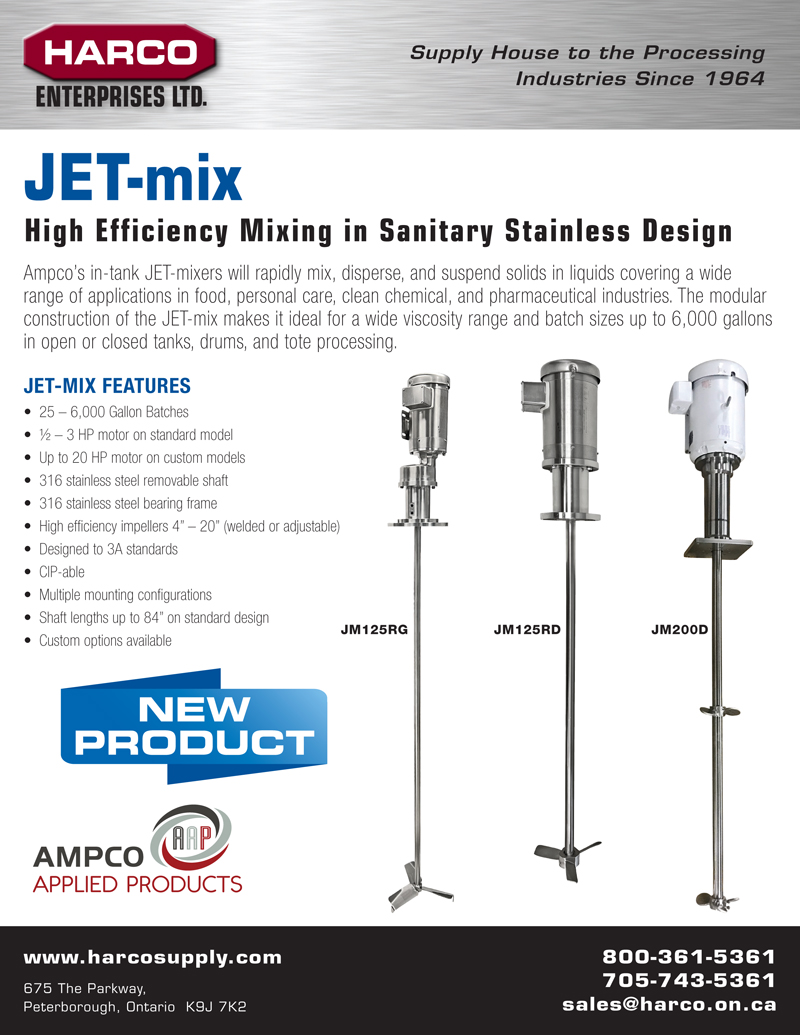

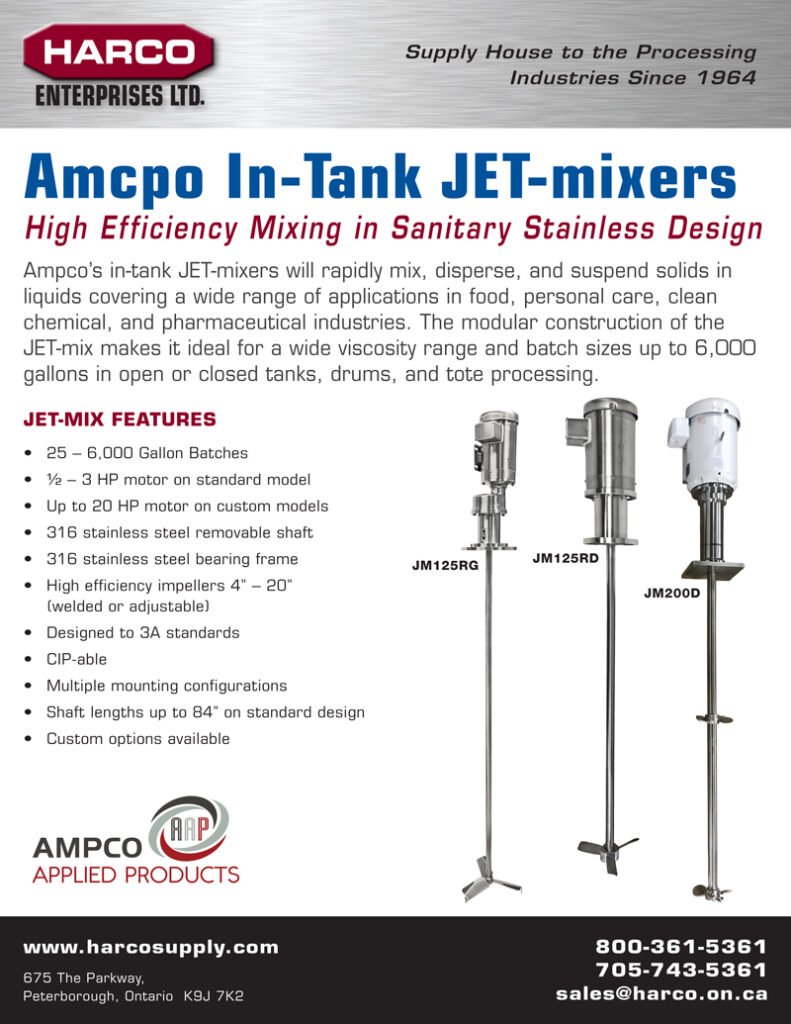

AMPCO IN-TANK JET-mix
High Efficiency Mixing in Sanitary Stainless Design
Ampco’s In-Tank JET-mixers will rapidly mix, disperse, and suspend solids in liquids covering a wide range of applications in food, personal care, clean chemical, and pharmaceutical industries. The modular construction of the JET-mix from Ampco makes it ideal for a wide viscosity range and batch sizes up to 6,000 gallons in open or closed tanks, drums, and tote processing.
JET-mix Features:
- 25-6,000 Gallon Batches
- ½ – 3 HP motor on standard model
- Up to 20 HP motor on custom models
- 316 stainless steel removable shaft
- 316 stainless steel bearing frame
- Designed to 3A standards
- CIP-able
- Multiple mounting configurations
- Shaft lengths up to 84″ on standard design
- Custom options available
Ampco’s JET-mix is great for rapid blending, hold tanks, suspension tanks and general storage tanks. The high-efficiency impeller design offers superior tank circulation with low HP requirements over a large range of viscosities.
For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]
