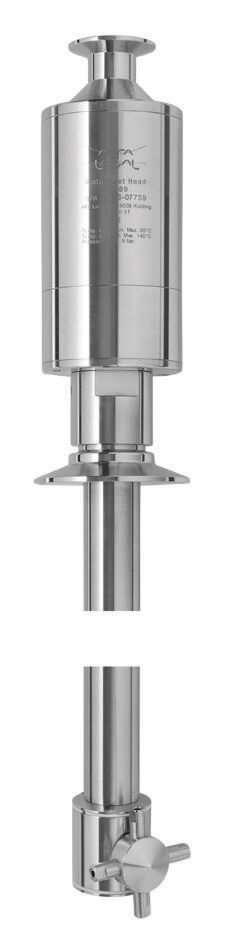

ALFA LAVAL TZ-89 ROTARY JET HEADS
Now available from Harco, the Alfa Laval TZ-89 rotary jet heads are advanced tank-cleaning devices engineered for hygienic processing environments. Designed to clean tanks ranging from 1,321 to 5,283 US gallons (5 to 20 m³), the TZ-89 combines pressure and flow to deliver high-impact cleaning jets in a repeatable and reliable 360° pattern.
Efficient by design, the Alfa Laval TZ-89 reduces water and cleaning media consumption while enhancing production uptime. With a customizable configuration, facilities can easily optimize cleaning performance and minimize downtime—spending less time cleaning and more time producing.
Applications
Ideal for removing even the most stubborn residues from hygienic tanks, Alfa Laval’s TZ-89 rotary jet head is a trusted solution across the dairy, food, beverage, brewery, and personal care industries. Thanks to its powerful and validated cleaning process, it helps maintain the strict sanitary conditions required in critical process tanks.
Key Benefits:
- 60% faster cleaning = more time for production
- Saves up to 70% of your cleaning cost
- Eliminates the need for confined space entry for manual tank cleaning
- High-impact cleaning in a 360° repeatable cleaning pattern
- Cleaning process can be validated using Alfa Laval Rotacheck
Performance & Design Features
Alfa Laval’s TZ-89 rotary jet head uses high-impact jet streams to clean tank interiors with progressively denser spray patterns. Ensuring full 360° coverage while minimizing water and cleaning media use. Powered by the flow of cleaning fluid, its nozzles rotate on both vertical and horizontal axes in a precise, geared motion. Cleaning begins with a coarse spray and gradually intensifies until the full pattern is complete—at which point the cycle resets to deliver consistent, reliable results.
To accommodate a variety of process needs, multiple nozzle diameters are available. This allows users to fine-tune jet impact and flow rate based on specific operating pressures. Additionally, the Alfa Laval TZ-89’s slim profile makes it an ideal choice for retrofitting existing spray balls, offering a cost-effective upgrade that dramatically reduces Cleaning-in-Place (CIP) time and expenses.
Moreover, Alfa Laval offers alternative tank-cleaning machines such as the Alfa Laval SaniJet 20 rotary jet head—ideal for applications requiring 3.1 material certification, ATEX compliance, and complete Q-doc documentation.
Contact Harco today to learn how the Alfa Laval TZ-89 rotary jet head can streamline your tank cleaning process and elevate your operational efficiency.
