ALFA LAVAL THINKTOP® V70 – ADVANCED VALVE CONTROL FOR SINGLE-SEAT AND MIXPROOF VALVES
Intelligent, Hygienic Sensing and Control

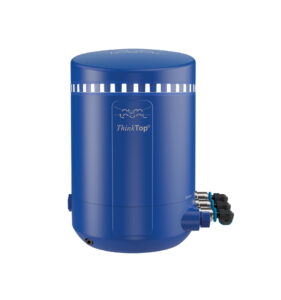

Now available from Harco, the Alfa Laval ThinkTop® V70 control top is a second-generation, compact sensing and control unit engineered for single seat and mixproof valves.
Offering real-time valve status monitoring, advanced CIP optimization, and intuitive setup, this smart solution is ideal for hygienic processing in the dairy, food, beverage, brewery, and pharmaceutical industries.
Built on the proven ThinkTop® platform, the Alfa Laval ThinkTop® V70 is fully interchangeable with earlier ThinkTop® models and easily retrofittable with just one sensor target and included adapter.
Key Benefits of the Alfa Laval ThinkTop® V70
- Auto Setup and Live Setup – Automatically recognize and configure valve types in seconds
- Burst and Pulse Seat Clean – Reduce CIP liquid consumption by up to 95%, saving water and time
- Real-time diagnostics – 24/7 smart monitoring for predictive maintenance and improved uptime
- 360° LED status indication – Visual feedback from any angle for instant process visibility
- Robust and hygienic – IP69K-rated, vibration-proof design with minimalist, composite housing
- Tool-free integration – No special tools or adapters required; threaded air fittings and color-coded hoses simplify installation
- Flexible control – Compatible with up to three solenoid valves and supports Flex Setup for custom configurations
Smarter Setup. Cleaner Processing. Greater Control.
With Auto Setup, Live Setup, and Flex Setup, the ThinkTop® V70 from Alfa Laval enables rapid configuration whether you’re commissioning a new line or upgrading an existing system. Auto Setup requires just two button presses— “Select” and “Enter”—to initiate valve recognition and programming. Alternatively, Live Setup enables remote configuration without removing the control head.
Alfa Laval’s ThinkTop® V70 also includes burst and pulse seat cleaning functions, which automate and optimize seat clean cycles based on valve position. These functions help save time and dramatically reduce cleaning-in-place (CIP) fluid usage, increasing plant sustainability and efficiency.
How It Works
Designed to support up to three solenoid valves, the ThinkTop® V70 from Alfa Laval provides a single-sensor solution for single-seat and mixproof valves. Converting PLC output signals into mechanical energy, the unit energizes or de-energizes the air-operated valve using a sensor target mounted on the valve stem.
Setup remains intuitive, fast, and repeatable—supporting hygienic processes that demand precision and reliability.
Ready to optimize your valve control and cleaning efficiency?
Contact Harco today to request a quote or speak with a specialist about how the Alfa Laval ThinkTop® V70 can improve performance, reduce water usage, and simplify control in your processing line.
For more information contact us at 1-800-361-5361 or 705-743-5361, or [email protected]
Watch this animation to learn about the operating principles of Alfa Laval ThinkTop® V50 and V70.
ThinkTop® V70 Units
Alfa Laval ThinkTop® V70 Digital PNP
| Part # | Supply Control board | Main entry | Solenoid valve | Air hose connection | Solenoid type |
| 9615400001 | 24 VDC | Cable gland | 0 | ||
| 9615400003 | 24 VDC | Cable gland | 1 | ø6mm | 2-Mar |
| 9615400007 | 24 VDC | Cable gland | 2 | ø6mm | 2-Mar |
| 9615400011 | 24 VDC | Cable gland | 3 | ø6mm | 2-Mar |
| 9615400015 | 24 VDC | Cable gland | 1 | ø6mm | 2-May |
| 9615400005 | 24 VDC | Cable gland | 1 | 1/4″ | 2-Mar |
| 9615400009 | 24 VDC | Cable gland | 2 | 1/4″ | 2-Mar |
| 9615400013 | 24 VDC | Cable gland | 3 | 1/4″ | 2-Mar |
| 9615400017 | 24 VDC | Cable gland | 1 | 1/4″ | 2-May |
| 9615400002 | 24 VDC | M12 plug | 0 | ||
| 9615400004 | 24 VDC | M12 plug | 1 | ø6mm | 2-Mar |
| 9615400008 | 24 VDC | M12 plug | 2 | ø6mm | 2-Mar |
| 9615400012 | 24 VDC | M12 plug | 3 | ø6mm | 2-Mar |
| 9615400016 | 24 VDC | M12 plug | 1 | ø6mm | 2-May |
| 9615400006 | 24 VDC | M12 plug | 1 | 1/4″ | 2-Mar |
| 9615400010 | 24 VDC | M12 plug | 2 | 1/4″ | 2-Mar |
| 9615400014 | 24 VDC | M12 plug | 3 | 1/4″ | 2-Mar |
| 9615400018 | 24 VDC | M12 plug | 1 | 1/4″ | 2-May |
Alfa Laval ThinkTop® V70 AS-Interface v2.1, 31 node
| Part # | Supply Control board | Main entry | Solenoid valve | Air hose connection | Solenoid type |
| 9615400101 | 29.5 -31.6 VDC | Cable gland | 0 | ||
| 9615400103 | 29.5 -31.6 VDC | Cable gland | 1 | ø6mm | 2-Mar |
| 9615400107 | 29.5 -31.6 VDC | Cable gland | 2 | ø6mm | 2-Mar |
| 9615400111 | 29.5 -31.6 VDC | Cable gland | 3 | ø6mm | 2-Mar |
| 9615400115 | 29.5 -31.6 VDC | Cable gland | 1 | ø6mm | 2-May |
| 9615400105 | 29.5 -31.6 VDC | Cable gland | 1 | 1/4″ | 2-Mar |
| 9615400109 | 29.5 -31.6 VDC | Cable gland | 2 | 1/4″ | 2-Mar |
| 9615400113 | 29.5 -31.6 VDC | Cable gland | 3 | 1/4″ | 2-Mar |
| 9615400117 | 29.5 -31.6 VDC | Cable gland | 1 | 1/4″ | 2-May |
| 9615400102 | 29.5 -31.6 VDC | M12 plug | 0 | ||
| 9615400104 | 29.5 -31.6 VDC | M12 plug | 1 | ø6mm | 2-Mar |
| 9615400108 | 29.5 -31.6 VDC | M12 plug | 2 | ø6mm | 2-Mar |
| 9615400112 | 29.5 -31.6 VDC | M12 plug | 3 | ø6mm | 2-Mar |
| 9615400116 | 29.5 -31.6 VDC | M12 plug | 1 | ø6mm | 2-May |
| 9615400106 | 29.5 -31.6 VDC | M12 plug | 1 | 1/4″ | 2-Mar |
| 9615400110 | 29.5 -31.6 VDC | M12 plug | 2 | 1/4″ | 2-Mar |
| 9615400114 | 29.5 -31.6 VDC | M12 plug | 3 | 1/4″ | 2-Mar |
| 9615400118 | 29.5 -31.6 VDC | M12 plug | 1 | 1/4″ | 2-May |
Alfa Laval ThinkTop® V70 AS-Interface v3.0, 62 node
| Part # | Supply Control board | Main entry | Solenoid valve | Air hose connection | Solenoid type |
| 9615400201 | 29.5 -31.6 VDC | Cable gland | 0 | ||
| 9615400203 | 29.5 -31.6 VDC | Cable gland | 1 | ø6mm | 2-Mar |
| 9615400207 | 29.5 -31.6 VDC | Cable gland | 2 | ø6mm | 2-Mar |
| 9615400211 | 29.5 -31.6 VDC | Cable gland | 3 | ø6mm | 2-Mar |
| 9615400215 | 29.5 -31.6 VDC | Cable gland | 1 | ø6mm | 2-May |
| 9615400205 | 29.5 -31.6 VDC | Cable gland | 1 | 1/4″ | 2-Mar |
| 9615400209 | 29.5 -31.6 VDC | Cable gland | 2 | 1/4″ | 2-Mar |
| 9615400213 | 29.5 -31.6 VDC | Cable gland | 3 | 1/4″ | 2-Mar |
| 9615400217 | 6629.5 -31.6 VDC | Cable gland | 1 | 1/4″ | 2-May |
| 9615400202 | 29.5 -31.6 VDC | M12 plug | 0 | ||
| 9615400204 | 29.5 -31.6 VDC | M12 plug | 1 | ø6mm | 2-Mar |
| 9615400208 | 29.5 -31.6 VDC | M12 plug | 2 | ø6mm | 2-Mar |
| 9615400212 | 29.5 -31.6 VDC | M12plug | 3 | ø6mm | 2-Mar |
| 9615400216 | 29.5 -31.6 VDC | M12 plug | 1 | ø6mm | 2-May |
| 9615400206 | 29.5 -31.6 VDC | M12 plug | 1 | 1/4″ | 2-Mar |
| 9615400210 | 29.5 -31.6 VDC | M12 plug | 2 | 1/4″ | 2-Mar |
| 9615400214 | 29.5 -31.6 VDC | M12 plug | 3 | 1/4″ | 2-Mar |
| 9615400218 | 29.5 -31.6 VDC | M12 plug | 1 | 1/4″ | 2-May |
Alfa Laval ThinkTop® V70 Digital IO-Link
| Part # | Supply Control board | Main entry | Solenoid valve | Air hose connection | Solenoid type |
| 9615400301 | 24 VDC | M12 plug | 0 | ||
| 9615400302 | 24 VDC | M12 plug | 1 | ø6mm | 2-Mar |
| 9615400304 | 24 VDC | M12 plug | 2 | ø6mm | 2-Mar |
| 9615400306 | 24 VDC | M12 plug | 3 | ø6mm | 2-Mar |
| 9615400308 | 24 VDC | M12 plug | 1 | ø6mm | 2-May |
| 9615400303 | 24 VDC | M12 plug | 1 | 1/4″ | 2-Mar |
| 9615400305 | 24 VDC | M12 plug | 2 | 1/4″ | 2-Mar |
| 9615400307 | 24 VDC | M12 plug | 3 | 1/4″ | 2-Mar |
| 9615400309 | 24 VDC | M12 plug | 1 | 1/4″ | 2-May |
