SRU Series Pumps

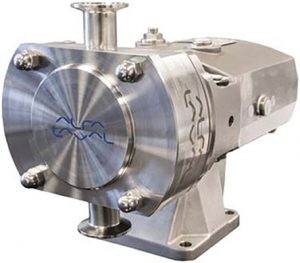

ALFA LAVAL SRU ROTARY LOBE PUMPS

Harco offers the Alfa Laval SRU rotary lobe pumps, which are engineered to provide reliable performance, trouble-free operation, and superior energy efficiency for demanding applications. In particular, the SRU series represents Alfa Laval’s core rotary lobe pumps designed for the gentle handling of sensitive process fluids within the dairy, food and beverage, biotechnology, and pharmaceutical industries.

Key Features:

Hygienic Design: These contamination-proof pumps meet high standards of hygiene.
Gentle Handling: Furthermore, they provide low-shear and low-pulsation operation suitable for sensitive fluids.
CIP & SIP Compatible: They also handle Cleaning-in-Place (CIP) and Sterilization-in-Place (SIP).
Modular Flexibility: In addition, the modular design allows configuring the pump exactly to meet specific process requirements.

Shaft Seals & Options:

To meet different process needs, the Alfa Laval SRU series positive displacement pump features an R90 external shaft seal, available in various materials and configurations.
Alternatively, the SRU series pumps can be fitted with Hyclean mechanical seals or other seal solutions.
Along with their range of models and capacities in horizontal or vertical porting, the pumps offer additional options, including:
- Standard and custom seals
- Heating/cooling saddles and jackets
- Integrated pressure relief valve
- Rectangular inlet for pumping high viscosity fluids

For inquiries regarding your Alfa Laval SRU Pump or SRU replacement parts, contact Harco. Call us at 1-800-361-5361 or 705-743-5361, or [email protected]

SPARE PARTS

Alfa Laval SRU Pump - R90 Single Mechanical Seals

Seal Type	Description Rotary Seal/Stationary Seal Ring	SRU 1	SRU 2	SRU 3	SRU 4	SRU 5	SRU 6
Single Mechanical	Stainless Steel/Carbon, NBR	9630032046	9630033227	9630033230	9630033114	9630033117	9630033237
Single Mechanical	Stainless Steel/Carbon, EPDM	9630026348	9630033228	9630033231	9630033233	9630033235	9630033239
Single Mechanical	Stainless Steel/Carbon, FPM	9630032577	9630032841	9630032908	9630032968	9630033118	9630033238
Single Mechanical	Stainless Steel/Carbon, PTFE	9630033226	9630033229	9630033232	9630033234	9630033236	9630033240
Single Mechanical	Stainless Steel/Inserted Carbon, NBR	9630032044	9630033248	9630033252	9630033253	9630033254	9630033255
Single Mechanical	Stainless Steel/Inserted Carbon, EPDM	9630033246	9630033250	9630033257	9630033260	9630033263	9630033266
Single Mechanical	Stainless Steel/Inserted Carbon, FPM	9630033245	9630033249	9630033256	9630033259	9630033262	9630033265
Single Mechanical	Stainless Steel/Inserted Carbon, PTFE	9630033247	9630033251	9630033258	9630033261	9630033264	9630033267
Single Mechanical	Tungsten Carbide/Inserted Carbon, NBR	9630032048	9630033268	9630033269	9630033270	9630033271	9630033272
Single Mechanical	Tungsten Carbide/Inserted Carbon, EPDM	9630033274	9630033277	9630033280	9630033283	9630033286	9630033289
Single Mechanical	Tungsten Carbide/Inserted Carbon, FPM	9630033273	9630033276	9630033279	9630033282	9630033285	9630033288
Single Mechanical	Tungsten Carbide/Inserted Carbon, PTFE	9630033275	9630033278	9630033281	9630033284	9630033287	9630033290
Single Mechanical	Tungsten Carbide/Tungsten Carbide, NBR	9630032049	9630032473	9630033291	9630033292	9630033293	9630033294
Single Mechanical	Tungsten Carbide /Tungsten Carbide, EPDM	9630033296	9630033299	9630033302	9630033305	9630033308	9630033311
Single Mechanical	Tungsten Carbide/Tungsten Carbide, FPM	9630033295	9630033298	9630033301	9630033304	9630033307	9630033310
Single Mechanical	Tungsten Carbide/Tungsten Carbide, PTFE	9630033297	9630033300	9630033303	9630033306	9630033309	9630033312
Single Mechanical	Silicon Carbide/Inserted Carbon, NBR	9630090695	9630090697	9630090699	9630042382	9630087180	9630090707
Single Mechanical	Silicon Carbide/Inserted Carbon, EPDM	9630090694	9630090696	9630073216	9630087140	9630090703	9630032866
Single Mechanical	Silicon Carbide/Inserted Carbon, FPM	9630069887	9630024870	9630090700	9630031835	9630090704	9630028988
Single Mechanical	Silicon Carbide Inserted Carbon, PTFE	9630071429	9630090698	9630090701	9630057619	9630085989	9630069377
Single Mechanical	Silicon Carbide/Silicon Carbide, NBR	9630032051	9630022584	9630043322	9630090702	9630062756	9630090705
Single Mechanical	Silicon Carbide/Silicon Carbide, EPDM	9630056727	9630060647	9630050713	9630061483	9630057537	9630077819
Single Mechanical	Silicon Carbide/Silicon Carbide, FPM	9630035318	9630060084	9630035405	9630045054	9630045055	9630032232
Single Mechanical	Silicon Carbide/Silicon Carbide, PTFE	9630090693	9630030257	9630073421	9630039376	9630045555	9630090706

Alfa Laval SRU Pump - Hyclean Single Mechanical Seals

Seal Type	Description Rotary Seal/Stationary Seal Ring	SRU 1	SRU 2	SRU 3	SRU 4	SRU 5	SRU 6
Single Mechanical	Stainless Steel/Carbon, NBR	9630070142	9630046729	9630046733	9630046737	9630046738	9630053215
Single Mechanical	Stainless Steel/Carbon, EPDM	9630053608	9630046731	9630046735	9630046741	9630046744	9630041719
Single Mechanical	Stainless Steel/Carbon, FPM	9630060999	9630046730	9630046734	9630046740	9630046743	9630030780
Single Mechanical	Silicon Carbide/Carbon, NBR	9630090687	9630046745	9630046749	9630046752	9630046755	9630090689
Single Mechanical	Silicon Carbide/Carbon, EPDM	9630090686	9630046747	9630046751	9630046754	9630046757	9630041729
Single Mechanical	Silicon Carbide/Carbon, FPM	9630057357	9630046746	9630046750	9630046753	9630046756	9630057267
Single Mechanical	Silicon Carbide/Silicon Carbide, NBR	9630090685	9630046758	9630046761	9630046765	9630046769	9630060539
Single Mechanical	Silicon Carbide/Silicon Carbide, EPDM	9630053609	9630046760	9630046763	9630046767	9630046771	9630041720
Single Mechanical	Silicon Carbide/Silicon Carbide, FPM	9630065312	9630046759	9630046762	9630046766	9630046770	9630049360

Alfa Laval SRU Pump - Cover/Spline Sealing Kit

Description	SRU 1	SRU 2	SRU 3	SRU 4	SRU 5	SRU 6
Cover/Spline Sealing Kit, NBR	9630099423	9630099431	9630099440	9630099449	9630099458	9630099467
Cover/Spline Sealing Kit, EPDM	9630099424	9630099432	9630099441	9630099450	9630099459	9630099468
Cover/Spline Sealing Kit, FPM	9630099425	9630099433	9630099442	9630099451	9630099460	9630099469
Cover/Spline Sealing Kit, PTFE	9630099426	9630099434	9630099443	9630099452	9630099461	9630099470

Includes: rotor case cover O-ring + 2 pcs of: rotor O-rings for shaft end and rotor O-rings for nut end

Alfa Laval SRU Pump - Hyclean Single Mechanical Service Kits

Seal Type	Description Rotary Seal/Stationary Seal Ring	SRU 1	SRU 2	SRU 3	SRU 4	SRU 5	SRU 6
Single Mechanical	Stainless Steel/Carbon, NBR	9630856395	9630856419	9630856443	9630856467	9630856491	9630856515
Single Mechanical	Stainless Steel/Carbon, EPDM	9630856396	9630856420	9630856444	9630856468	9630856492	9630856516
Single Mechanical	Stainless Steel/Carbon, FPM	9630856397	9630856421	9630856445	9630856469	9630856493	9630856517
Single Mechanical	Silicon Carbide/Carbon, NBR	9630856398	9630856422	9630856446	9630856470	9630856494	9630856518
Single Mechanical	Silicon Carbide/Carbon, EPDM	9630856399	9630856423	9630856447	9630856471	9630856495	9630856519
Single Mechanical	Silicon Carbide/Carbon, FPM	9630856400	9630856424	9630856448	9630856472	9630856496	9630856520
Single Mechanical	Silicon Carbide/Silicon Carbide, NBR	9630856401	9630856425	9630856449	9630856473	9630856497	9630856521
Single Mechanical	Silicon Carbide/Silicon Carbide, EPDM	9630856402	9630856426	9630856450	9630856474	9630856498	9630856522
Single Mechanical	Silicon Carbide/Silicon Carbide, FPM	9630856403	9630856427	9630856451	9630856475	9630856499	9630856523
Single Mechanical	Silicon Carbide/Silicon Carbide Inserted , NBR	9630851643	9630856529	9630856537	9630856545	9630856553	9630852356
Single Mechanical	Silicon Carbide/Silicon Carbide Inserted , EPDM	9630851640	9630856530	9630856538	9630856546	9630856554	9630852353
Single Mechanical	Silicon Carbide/Silicon Carbide Inserted, FPM	9630851642	9630856531	9630856539	9630856547	9630856555	9630852355
