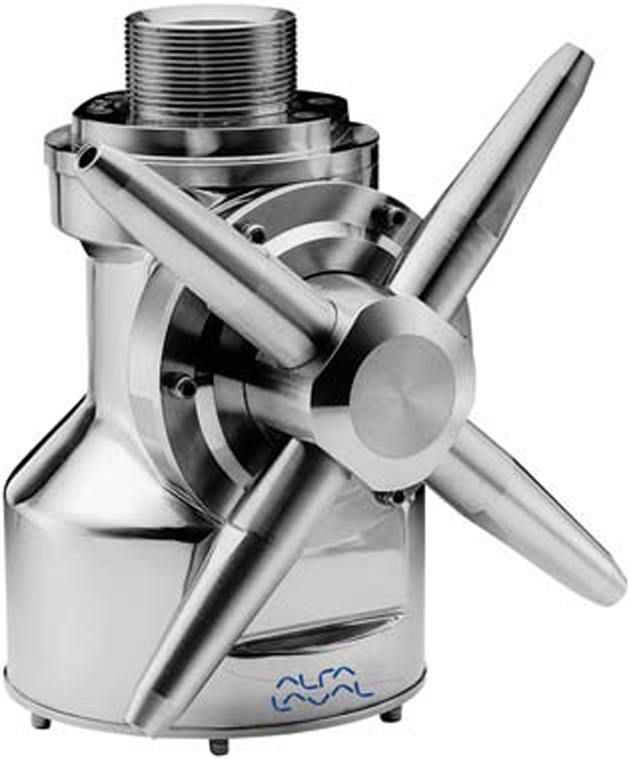

ALFA LAVAL TOFTEJORG TZ-66 ROTARY JET HEADS

Now available from Harco, the Alfa Laval Toftejorg TZ-66 rotary jet heads deliver precise 3D indexed impact cleaning in a fully automatic process. Designed for hygienic tank cleaning, these advanced devices guarantee consistent quality assurance. They are ideal for processing, storage, and transportation tanks from 250 to 1,250 m³.

Application

Built for demanding environments, the Alfa Laval TZ-66 is widely used in breweries, food and dairy processing, and other industries. It excels in portable cleaning setups where high-impact performance is essential.

Working Principle & Design

How It Works

Cleaning fluid powers nozzles that rotate on vertical and horizontal axes, creating a targeted 3D spray pattern. The first cycle covers the tank surface with a coarse spray, and each subsequent cycle increases pattern density. After eight cycles, the entire tank receives thorough 360° coverage.

Customizable Features

Nozzle diameters vary to adjust jet impact length and flow rate, fitting different pressure needs. Portable systems can include a four-wheel carriage and hose winch for easy handling. Each unit comes with a Declaration of Conformity for full material specs, ensuring compliance and traceability.

Contact Harco today to discover how Alfa Laval Toftejorg TZ-66 rotary jet heads can boost your CIP system’s efficiency and cleaning performance.
