ThinkTop®

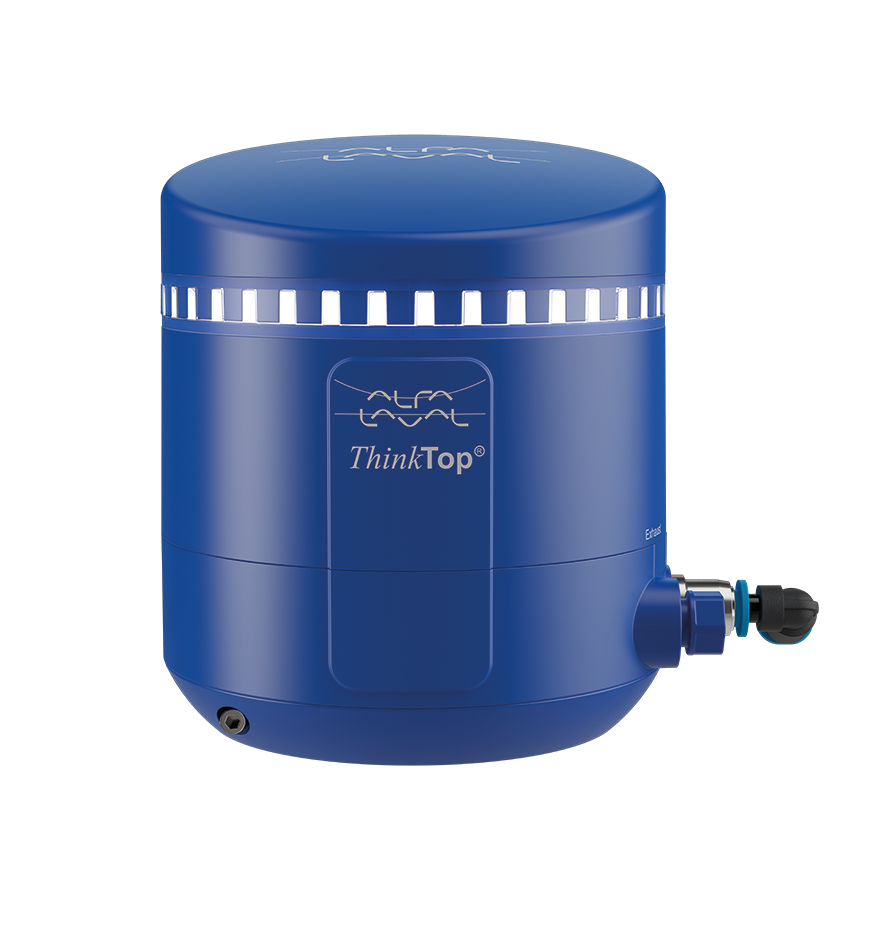

Key Benefits of the Alfa Laval ThinkTop® V40

• Safe, reliable production through enhanced control features
• Fast, easy installation with automatic valve detection and low maintenance design
• Resource-efficient performance with low energy consumption and long service life
• Precise, real-time control via digital and AS-i communication protocols
• Hygienic and durable construction with IP69K-rated protection for safe operation

Smarter Automation with Real-Time Monitoring

With the ThinkTop® V40 from Alfa Laval, operators gain 24/7 valve status updates for improved process visibility and accuracy. The integrated solenoid valve allows for precise actuation, while built-in sensors deliver continuous real-time valve position feedback, reducing the risk of human error and improving overall uptime.

Designed with hygiene in mind, Alfa Laval’s ThinkTop® V40 is easy to clean and meets strict sanitary standards. And the plug-and-play setup accelerates installation, while the 360° LED status indication provides clear, all-angle visibility for operational assurance.

How It Works

Alfa Laval’s ThinkTop® V40 control unit delivers a compact, single-sensor solution for butterfly and single seat valves. Using one solenoid valve, the control unit translates electrical PLC output signals into mechanical energy, which either energizes or de-energizes the air-operated valve through a sensor target mounted on the valve stem.

Installation is simple and efficient with Alfa Laval’s Live Setup feature. Operators can initiate the Live Setup sequence by activating the solenoid valve’s manual override—after which the Alfa Laval ThinkTop® V40 automatically detects the valve type and completes the programming. Alternatively, setup can be done remotely via PLC, eliminating the need to disassemble the control unit.
